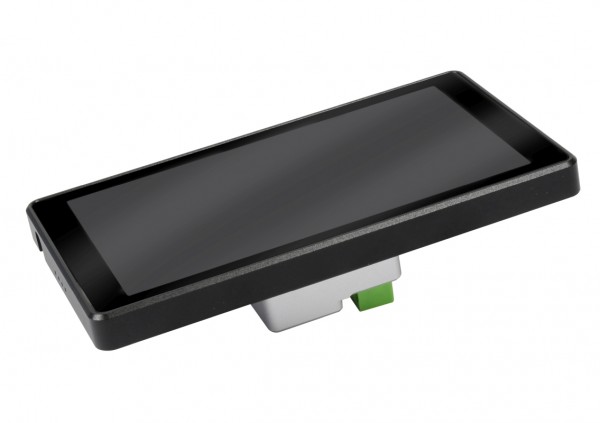

ALLNET Touch Display Tablet 5 Zoll PoE mit 2GB/16GB, RK3566
- stock: 0
- part no.: 208834
- vendor: ALLNET
- mnufacturer no.: UD5RK3566A11
- EAN No.: 4038816208835
- weight: 0.438kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung
Built-in touch display with Rockchip RK3566 CPU and Android. 2GB Ram / 16GB memory. Expandable via USB and SD cards. Resolution 720x1280, PoE (Power over Ethernet). Power supply 12-24V possible.
It can be mounted on round and square flush-mounted boxes.
The display is specially designed for home automation, visualization and building control applications, as well as for mounting in control cabinets or for tabletop installation.
If the display is very small, you can change it with the APP Easy DPI Changer. Here change the DPI number from 160 to 180,200,220 or 240. Depending on your needs.
It is always recommended to test the devices for special applications in the long term to ensure all the required functions.
|
Model NO. ALLTAB-10RK3566A11PoE |
||
|
Product Type |
5,0" POE |
|
|
Description |
||
|
System |
CPU/GPU |
Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
|
RAM |
2GB |
|
|
ROM |
16GB |
|
|
System |
Android 11 |
|
|
Display |
screen |
5,0 Zoll IPS Panel |
|
resolution |
1280x720 Wide viewing |
|
|
Contrast |
1000 |
|
|
Brightness |
500nits | |
|
Network |
WiFi |
802.11a/b/g/n 2,4/5GHz |
|
Ethernet |
POE 15,4 Watt IEEE802.3af Class4 |
|
|
Bluetooth |
YES |
|
|
3G |
Support external 3G USB dongle |
|
|
Jack |
SD |
Support SD card ( Max 32G ) |
|
Mini USB |
Mini USB |
|
|
USB Host x 3 |
USB Host 3.0/2.0 |
|
|
RJ-45 |
built in |
|
|
DC |
DC input 12V |
|
|
Headset |
3.5mm stereo headphone/micro output |
|
|
Multimedia |
Video |
Video decode – H.264/H.265/VP9 |
|
Audio |
MP3/WMA/AAC etc. |
|
|
Picture |
jpeg, jpg |
|
|
other functions |
Wireless mouse |
Support |
|
Wireless keyboard |
Support |
|
|
Speak |
1x1W |
|
|
Camera |
no |
|
|
OSD Language |
Multi language OSD operation |
|
|
attachment |
Adapter |
no |
|
Wall Bracket |
yes |
|
| Vesa | no | |
Produktmerkmale:
| Arbeitsspeicher (RAM): | 2 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3566 |
| Diagonale: | 5,5 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| Kamera: | nein |
| Mobilfunk: | nein |
| Montageart: | Unterputzdose eckig, Unterputzdose rund |
| Produktart: | Tablet |
| SIP Einbindung: | nein |
| Stromversorgung: | PoE&Netzteil |
| Touchscreen: | Capacitiv |
| WLAN: | 2,4 |
