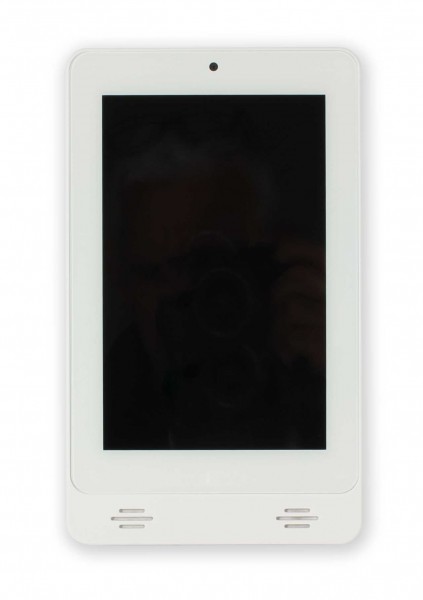

ALLNET Touch Display Tablet 7 inch PoE with 2GB/16GB, RK3288, Android 9.0
product pictures similar, may differ from the product description!
-
Last Stock Article
- stock: 0
- part no.: 158934
- vendor: ALLNET
- mnufacturer no.: ALLTAB7RK3288A10PoE
- EAN No.: 4038816081254
- weight: 0.3kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
7 inch wall display with RK3288 CPU and Android 9.0. 2GB Ram / 16GB memory. Expandable via USB,... more
Product information "ALLNET Touch Display Tablet 7 inch PoE with 2GB/16GB, RK3288, Android 9.0"
7 inch wall display with RK3288 CPU and Android 9.0. 2GB Ram / 16GB memory. Expandable via USB, resolution 1280x800 pixels, PoE (Power over Ethernet). The power consumption in 24/7 operation is a low 5-8 watts when the display is switched off. Automatic display switch-off and touch to wake, colour white, sale - only available from stock
Technical details:
| CPU & Display | CPU | Quad core Rockchip 3288 Quad Core 4-Corte 1.2GHz | |
| Display size | 7 inch multi-point touch screen 800*1280 pixels | ||
| System | Android 8.1 | ||
| Resolution | 800*1280 | ||
| Brightness (Nit) | about 260~300 NITS | ||
| Touch Panel | capactive touch screen | ||
| Memory | RAM | 2G | |
| Nand Flash | 16G | ||
| Battery | NO | ||
| Sound System | 1W * 2pcs speaker | ||
| I/O ports | VESA PORT | 75*75cm | |
| Front | 10 point capactive touch panel | ||
| Speaker 2*1w | |||
| POE RJ45 | Ethernet interface input (RJ-45 cable) supporting POE (IEEE 802.3af) | ||
| USB host | 1*USB type A | ||
| TF card slot | *1 | ||
| Mic | Yes | ||
| DC | 12V DC in power terminal | ||
| Camera | Front camera 2.0MP | ||
| Mount | 2hole 60mm length for two screw | ||
| RJ45 port( POE IEEE 802.3af) Vesa port 75*75cm | |||
| Software specs | System | Google Android 6.0, support Flash 11.1 | |
| Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | ||
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
| Application software | Video / Movie / Music / FM online | ||
| Office software | Office software : Word, Excel, PPT, PDF, TXT, HTML, RTF, FB2, UMD | ||
| PDF Reader /Photo Browser | PDF Reader / Photo browser | ||
| Language | Support multi-languages | ||
| Working temp | 0--50degree | ||
| Customised software | touch-wake function | ||
| Booted with Super SU & BOOTING LOGO | |||
| Dimmension | Dimming |
|
Attention: the tablet has no power button! Can only be switched off on the hardware side! A display switch-off function with sleep mode and touch to wake is available. Power adapter included in the scope of delivery.
When using as a sound station, you should test the apps for functionality beforehand.
Produktmerkmale:
| Arbeitsspeicher (RAM): | 2 |
| Betriebssystem: | Android 8 |
| Bluetooth: | ja |
| Chipset: | RK3288 |
| Diagonale: | 7,0 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | weiß |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| Produktart: | Tablet |
| WLAN: | 2,4 |
