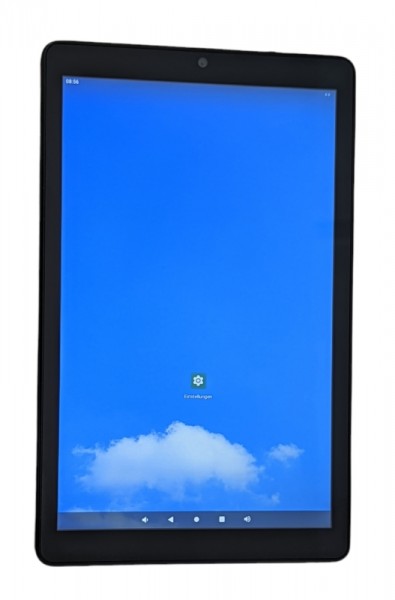

ALLNET Touch Display Tablet 8 inch PoE with 4GB/32GB, RK3566 Android 13, flush-mounted box
- stock: 0
- part no.: 210249
- vendor: ALLNET
- mnufacturer no.: UD8RK3566A13
- EAN No.: 4038816121691
- weight: 0.63kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung
Built-in touch display on flush-mounted box with Rockchip RK3566 CPU and Android. 4GB RAM / 32GB memory. Expandable via USB and SD cards. Resolution 800x1280, PoE (Power over Ethernet).
The display is fixed with a frame in a flush-mounted box and placed flat on the wall. It can be mounted on round and square flush-mounted boxes.
The display is specially designed for applications in home automation, visualisation and building control as well as for mounting in control cabinets or for table-top installation.
It is always advisable to test the devices for special applications in the long term to ensure all the required functions. Special feature: Power supply 12-24V DC or PoE 15.4 watts. No power supply unit included in the scope of delivery.
The display is also suitable as a meeting room display or for home automation to visualise certain conditions thanks to the integrated LED strip on the sides.
Help for HTTP control via GET command can be found here:
|
Model NO. UD-8RK3566A11 |
||
|
Product Type |
8.0" POE LED Display |
|
|
Description |
||
|
System |
CPU/GPU |
Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
|
RAM |
4GB |
|
|
ROM |
32GB |
|
|
System |
Android 13 |
|
|
Display |
screen |
8.0 inch IPS panel |
|
resolution |
1280x800 Wide viewing |
|
|
Contrast |
1000 |
|
|
Brightness |
300nits | |
| Touch function | 5-point capacitive multi-touch screen | |
|
Network |
WiFi |
802.11a/b/g/n 2.4/5GHz |
|
Ethernet |
POE 15.4 Watt IEEE802.3af 100/1000M |
|
|
Bluetooth |
YES Bluetooth 5.0 |
|
|
3G |
no |
|
|
Jack |
SD |
Support TF card ( Max 64G ) |
|
USB |
USB Host/ USB-C OTG (Upgrade) | |
|
USB Host |
USB host |
|
|
RJ-45 |
built in |
|
|
Power |
DC input 12-24V |
|
| RS485 | 2 PIN RS485 | |
|
Multimedia |
Video |
Video decode - H.264/H.265/VP9 |
|
Audio |
MP3/WMA/AAC etc. |
|
|
Picture |
jpeg, jpg |
|
|
other functions |
Wireless mouse |
Support |
|
Wireless keyboard |
Support |
|
|
Speak |
1x1W |
|
|
Camera |
2MP |
|
|
OSD Language |
Multi language OSD operation |
|
|
attachment |
Adapter |
no |
|
Wall bracket |
yes |
|
| Vesa | no | |
| Dimensions | Dimensions: 200 mm x 124.59 mm x 37.7 mm | |
Produktmerkmale:
| Abmessung: | 200x124.59x37,7mm |
| Arbeitsspeicher (RAM): | 2 |
| Auflösung Panel: | 1280x800 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3566 |
| Diagonale: | 8 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | Unterputzdose eckig, Unterputzdose rund |
| Produktart: | Tablet |
| SIP Einbindung: | nein |
| Stromversorgung: | PoE&Netzteil |
| Touchscreen: | Capacitiv |
| WLAN: | 2,4/5 |
