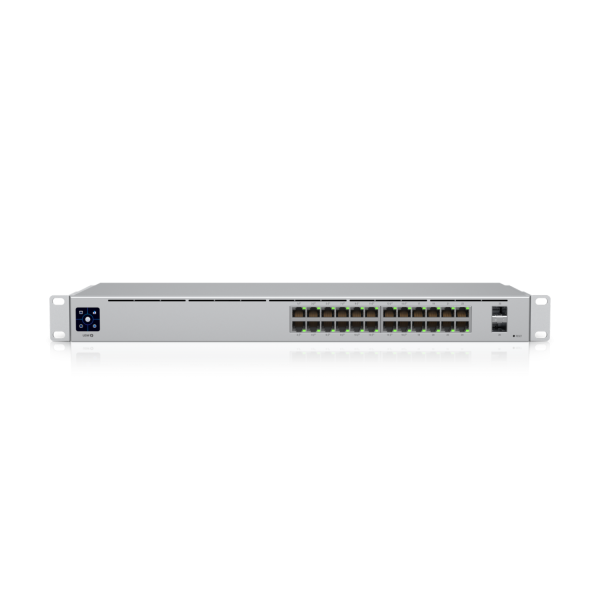

Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 180928
- vendor: Ubiquiti
- mnufacturer no.: USW-24-POE
- weight: 4.1kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
A 24-port, Layer 2 PoE switch with a fanless cooling system.
(16) GbE PoE+, (8) GbE ports... more
Product information "Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE"
A 24-port, Layer 2 PoE switch with a fanless cooling system.
(16) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
95W total PoE availability
Fanless, silent cooling
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 120W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 25W (Excluding PoE output) |
| Total available PoE | 95W |
| Max. PoE wattage per port by PSE | PoE+: 32W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE Speed/link/activity |
| SFP | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
