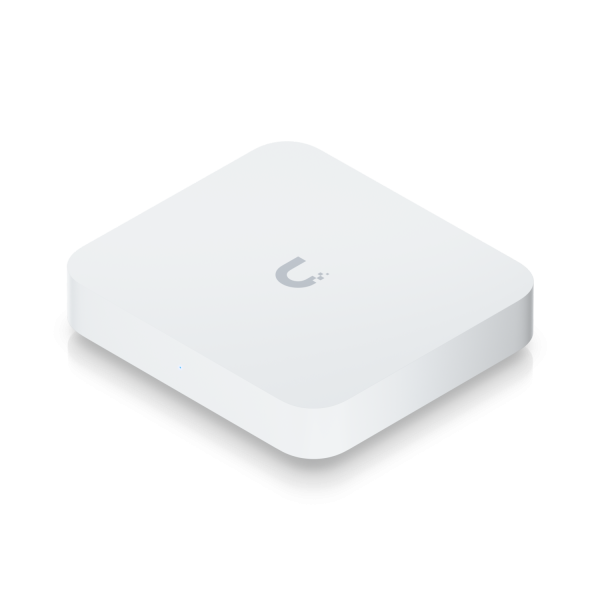

Ubiquiti UniFi Gateway Max / 1 x 2,5-GbE-WAN-Port / 4 x 2,5-GbE-LAN-Ports / USB-C / UXG-Max
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 228393
- vendor: Ubiquiti
- mnufacturer no.: UXG-Max
- weight: 0.52kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at... more
Product information "Ubiquiti UniFi Gateway Max / 1 x 2,5-GbE-WAN-Port / 4 x 2,5-GbE-LAN-Ports / USB-C / UXG-Max"
Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
Up to 1.5 Gbps routing with IDS/IPS
(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Resistance | IK04 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| Memory information | 2 GB DDR4 |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) 2.5 GbE RJ45 ports WAN: (1) 2.5 GbE RJ45 port |
| Power method | USB type C (5V/3A) |
| Supported voltage range | 100–240V |
| Max. power consumption | 9.6W |
| LED | Ethernet White: link/activity |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IPv6 ISP support *When paired with a Cloud Key or Official UniFi Hosting. **When paired with a Cloud Key. |
| Application Requirements | |
| UniFi Network | Version 8.1.113 and later |
