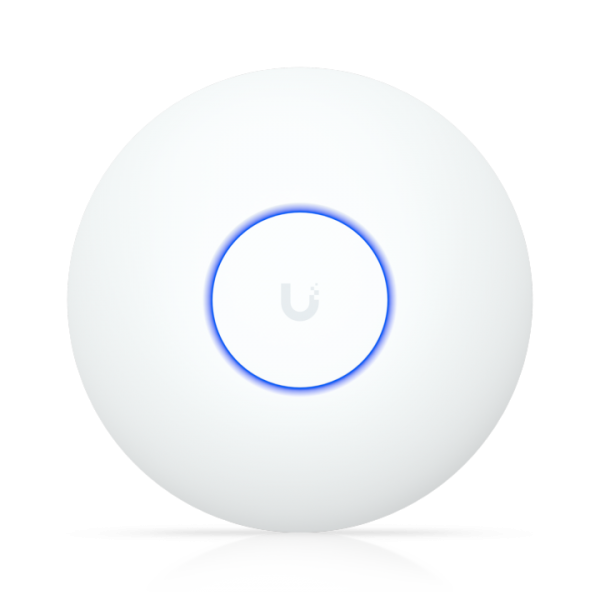

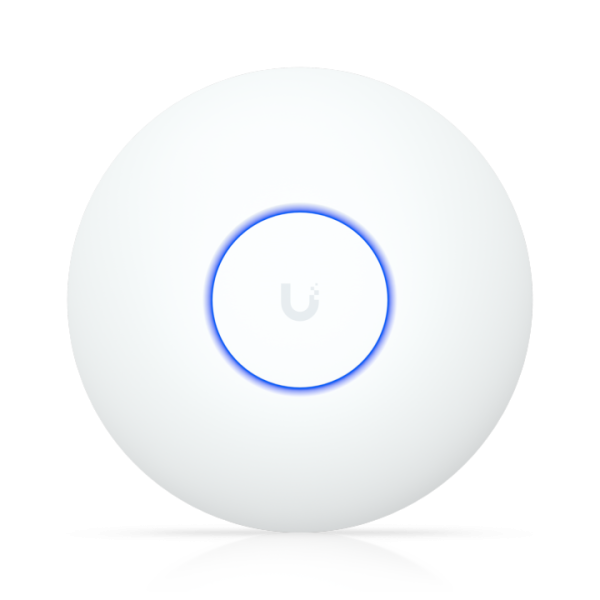

Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 2,5 GbE • UniFi • U7-Lite

Preview: Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 2,5 GbE • UniFi • U7-Lite

product pictures similar, may differ from the product description!

net price plus shipping costs

Expected to be available from 26 March 2025

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 242083
vendor: Ubiquiti
mnufacturer no.: U7-Lite
weight: 0.313kg
warranty: 12 months
Do you have any questions concerning this product?

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink. Highlights:... more

Close menu

Product information "Ubiquiti Wireless AP WIFI7 • BE5000 • 2x2 • Indoor • 2,5 GbE • UniFi • U7-Lite"

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Highlights:

WLAN 7
4 spacious beaches
115 m² (1,250 ft²) coverage
Over 200 connected devices
Power supply via PoE
2.5 GbE uplink

Technical data:

Mechanical
Maße	Ø171.5 x 33 mm (Ø6.8 x 1.3")
Weight	313 g (11 oz)
Favourite material	Polycarbonate
Mounting material	Polycarbonate, galvanised steel (SGCC)
Hardware
Network interface	(1) 1/2.5 GbE RJ45 connection
Management interface	Ethernet
Power method	PoE
Power supply	UniFi PoE switch
Supported voltage range	42.5–57 V direct current
Max. Power consumption	13W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	23 dBm 24 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) –
Max. Data rate 2.4 GHz 5 GHz 6 GHz	688 Mbit/s (BW40) 4.3 Gbit/s (BW240) – _{Depending on the regulatory region.}
Antenna gain 2.4 GHz 5 GHz 6 GHz	4 dBi 5 dBi –
LEDs	White/blue
Button	Factory reset
Mounting	Wall/ceiling (included)
Operating ambient temperature	-30 to 40 °C (-22 to 104 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Software
WLAN standards	802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Rate limitation per user
Isolation of guest traffic	Supported
Concurrent clients	200+
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b	1, 2, 5.5, 11 Mbit/s
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WLAN 6)	7.3 Mbit/s to 2.4 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WLAN 7)	7.3 Mbit/s to 4.3 Gbit/s (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) _{Depending on the regulatory region.}
Application requirements
UniFi network	Version X and higher
UniFi OS	Version X and higher
