Ubiquiti Unifi Swiss Army Knife Ultra Access Point / Indoor & Outdoor / WiFi 5 / PoE / 2 x RP-SMA-F / UK-Ultra
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 223885
- vendor: Ubiquiti
- mnufacturer no.: UK-Ultra
- EAN No.: 8100846936364
- weight: 0.2kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Incredibly compact indoor/outdoor PoE access point with long-range external antenna support... more
Product information "Ubiquiti Unifi Swiss Army Knife Ultra Access Point / Indoor & Outdoor / WiFi 5 / PoE / 2 x RP-SMA-F / UK-Ultra"

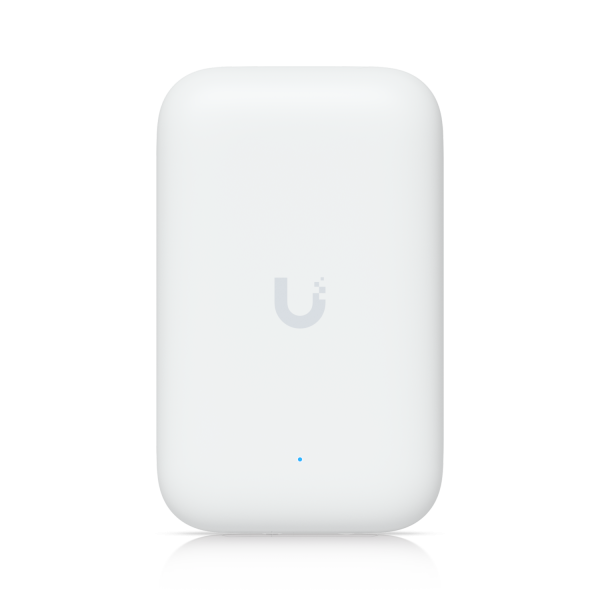

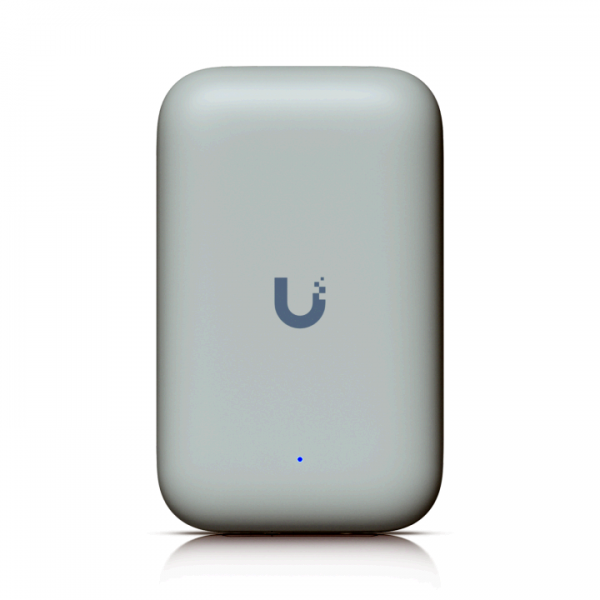

Incredibly compact indoor/outdoor PoE access point with long-range external antenna support and versatile mounting options.
115 m² (1,250 ft²) coverage with internal antenna
200+ connected devices
WiFi 5 (2x2 MIMO)
Powered using PoE
Compact form factor
Versatile wall and pole mounting
(2) RP-SMA connectors for optional external antennas
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| Weight | 173 g (6.1 oz) |
| Enclosure materials | UV-stabilized polycarbonate |
| Mount materials | Polycarbonate, SGCC steel, plastic |
| Pole mount diameter | 1~2" on pipe outer diameter |
| Wind survivability | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE Switch |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 8W |
| Max. TX power 2.4 GHz 5 GHz |
20 dBm 20 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz |
300 Mbps 866.7 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
6 dBi 6 dBi |
| Antenna | (1) Internal antenna (2) RP-SMA connectors for optional external antennas |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole mount (Included) |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Application Requirements | |
| UniFi Network | Web: Version 8.0.7 and later iOS™: Version 10.11.1 and later Android™: Version 10.10.1 and later |
