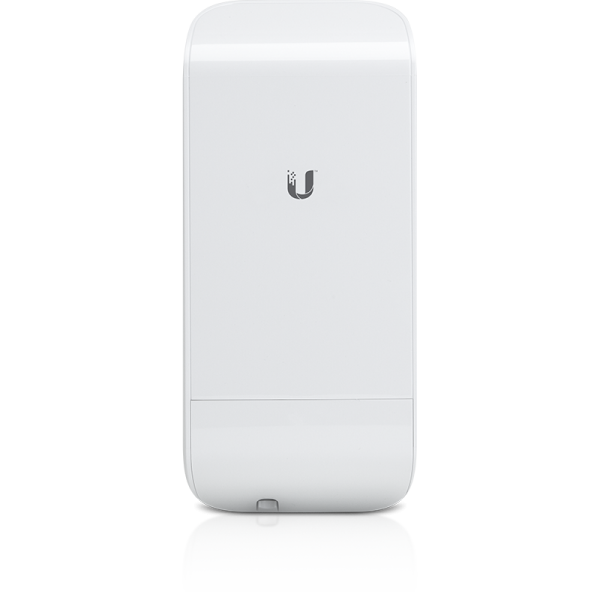

Ubiquiti NanoStation Loco M2, antenna 8dBi, outdoor client 2,4GHz
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 106616
- vendor: Ubiquiti
- mnufacturer no.: LocoM2
- EAN No.: 810354022333
- weight: 0.514kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Low-cost and efficient broadband 2.4 GHz CPE.
2.4 GHz frequency band
Cost-effective,... more
Product information "Ubiquiti NanoStation Loco M2, antenna 8dBi, outdoor client 2,4GHz"
Low-cost and efficient broadband 2.4 GHz CPE.
2.4 GHz frequency band
Cost-effective, high-performance
Plug-and-play integration with airMAX antennas
Technical Specifications
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 oz) |
| Power Supply (PoE) 24V, 0.5A | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 2412-2462 MHz |
| Gain | 8.5 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
| Frequency | 2.4 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 60° (H-pol) / 60° (V-pol) / 60° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
