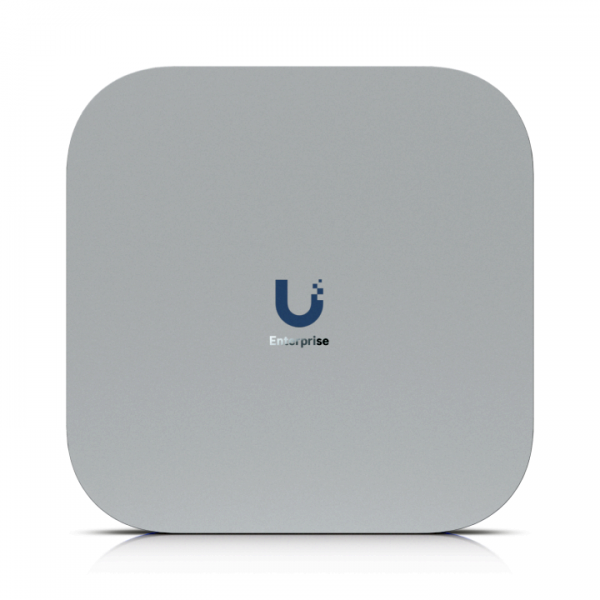

Ubiquiti Wireless AP WIFI7 • BE20780 • 4x4 • Indoor • 10 GbE • UniFi • E7

Preview: Ubiquiti Wireless AP WIFI7 • BE20780 • 4x4 • Indoor • 10 GbE • UniFi • E7

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 237425
vendor: Ubiquiti_Enterprise
mnufacturer no.: E7
EAN No.: 8100846946646
weight: 3kg
warranty: 12 months
Do you have any questions concerning this product?

This item can only be sold if a project has been registered beforehand. Project registration at... more

Close menu

Product information "Ubiquiti Wireless AP WIFI7 • BE20780 • 4x4 • Indoor • 10 GbE • UniFi • E7"

This item can only be sold if a project has been registered beforehand. Project registration at ubiquiti@allnet.de

Highlights:

WiFi 7 with 6 GHz support
10 round-the-clock streams
Real-time spectral analysis for improved channel selection
Dedicated spectrum analyser radio
6 GHz power with long range and AFC*
185 m² (2,000 ft²) coverage
Over 1,000 connected devices
(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power and data redundancy
Depot-compatible mounting system**
Power supply via PoE++

Enterprise-class indoor access point with 10-stream Wi-Fi 7 performance, a 10 GbE uplink and a redundant GbE port for high availability.

Technical data

Mechanical
Dimensions	250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7 inches)
Weight	1.8 kg
Handle material	UV-stabilised polycarbonate, aluminium alloy
Mounting material	Stainless steel (SUS304), galvanised steel (SGCC)
Hardware
Network interface	(1) 10 GbE RJ45 port (1) 1 GbE RJ45 port
Management interface	Ethernet
Power method	PoE++
Power supply	UniFi PoE switch
Supported voltage range	42.557 V direct current
Max. Power consumption	43W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	23 dBm 30 dBm 24 dBm / 30* dBm *With 6 GHz extended range mode. Only available in the FCC/IC region.
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO)
Max. Data rate 2.4 GHz 5 GHz 6 GHz	688 Mbit/s (BW40) 8.6 Gbit/s (BW240) 11.5 Gbit/s (BW320)
Antenna gain 2.4 GHz 5 GHz 6 GHz	5 dBi 6 dBi 6 dBi
Antenna	Internal with omni pattern
LEDs	R/G/B
Button	Factory reset
Mounting	Wall/ceiling (included)
Operating ambient temperature	-30 to 50 °C (-22 to 122 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Software
WLAN standards	802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Rate limitation per user
Isolation of guest traffic	Supported
Concurrent clients	&over 1,000
Ubiquiti-specific functions	Dedicated spectrum analyser radio
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11b	1, 2, 5.5, 11 Mbit/s
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 600 Mbit/s (MCS0 MCS31, HT 20/40)
802.11ac	6.5 Mbit/s to 3.4 Gbit/s (MCS0 MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WLAN 6)	7.3 Mbit/s to 4.8 Gbit/s (MCS0 MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WLAN 7)	7.3 Mbit/s to 11.5 Gbit/s (MCS0 MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
Application requirements
UniFi network	Version 8.6.9 and higher
UniFi OS	Version 4.0.20 and higher
