Ubiquiti UniFi Access Reader Gen3 Pro • black • UA-G3-Pro-B

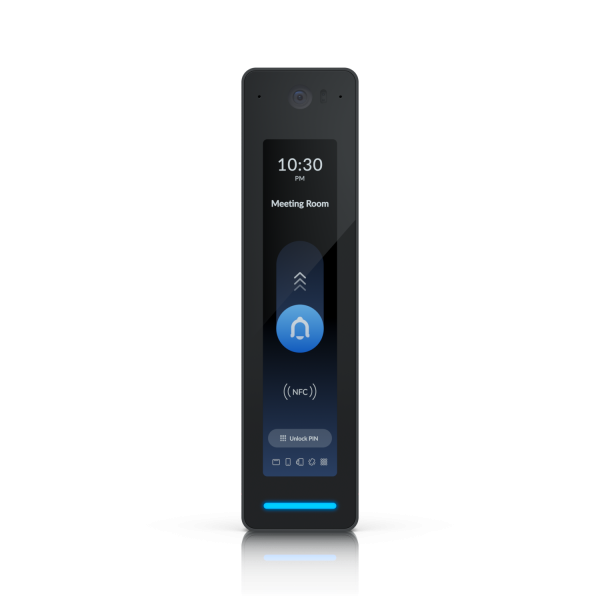

Preview: Ubiquiti UniFi Access Reader Gen3 Pro • black • UA-G3-Pro-B

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 239846
vendor: Ubiquiti
mnufacturer no.: UA-G3-Pro-B
weight: 0.136kg
warranty: 12 months
Do you have any questions concerning this product?

Third-generation NFC reader and intercom for indoor and outdoor use with Apple Touch Pass... more

Close menu

Product information "Ubiquiti UniFi Access Reader Gen3 Pro • black • UA-G3-Pro-B"

Third-generation NFC reader and intercom for indoor and outdoor use with Apple Touch Pass support.

Highlights:

Unlock with NFC card, PIN, mobile UniFi Identity app, face unlock and Touch Pass
Unlock doorbell with visitor video and intercom
Video works with ADA-compliant mounting height
Weather resistance according to IP55 (-10 to 45 °C)
Connection to the UniFi Access Hub üvia PoE

Technical data:

Mechanical
Dimensions	160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6 inches)
Weight	136 g (4.8 oz)
Favourite material	Polycarbonate, glass
Mounting material	Aluminium alloy
Mounting	Wall bracket (included in the scope of delivery) Gangbox bracket (included in the scope of delivery) Angle bracket (optional ) Junction box (optional)
Weather resistance	IP55
Hardware
Network interface	(1) GbE RJ45 connection
Connectivity	BLE 4.2 NFC
Power method	PoE
Supported voltage range	48 V direct current
Max. Power consumption	6W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensor	Proximity sensor
Angle of view of the camera	H: 96.67°, V: 123.15°, D: 153.11°
Microphone	Yes
Speaker	(1) 4 Ohm, 1.5 W
LEDs	R/G/B/W/Bernstein (find out more)
Button	(1) Factory reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
Operating environment	Außen area
Operating ambient temperature	Gerät: -30 to 45 °C (-22 to 113 °F) Display:* -10 to 45 °C (14 to 113 °F) *The display is switched off when the ambient temperature is above/below the operating temperature of the display, but other functions remain functional. (Valid from firmware v1.3.28)
Humidity during operation	5 to 90 % non-condensing
Certifications	CE, FCC, IC
Software
Administrative application	UniFi Access: Version 3.0.15 and higher
