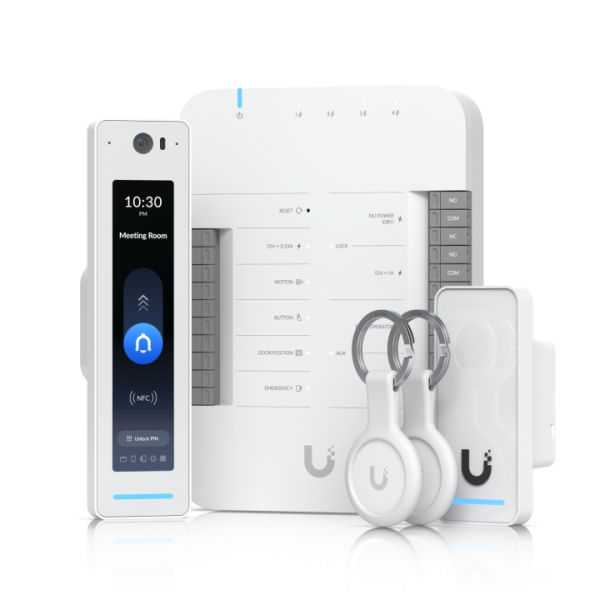

Ubiquiti UniFi Access Starter Kit Gen3 Pro • UA-G3-SK-Pro

Preview: Ubiquiti UniFi Access Starter Kit Gen3 Pro • UA-G3-SK-Pro

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 239898
vendor: Ubiquiti
mnufacturer no.: UA-G3-SK-Pro
EAN No.: 810084699317
weight: 0.363kg
warranty: 12 months
Do you have any questions concerning this product?

Starter kit that offers complete entry and exit control for a single door with two readers and... more

Close menu

Product information "Ubiquiti UniFi Access Starter Kit Gen3 Pro • UA-G3-SK-Pro"

Starter kit that offers complete entry and exit control for a single door with two readers and Apple Touch Pass support.

Highlights:

(1) Door Hub
(1) G3 Reader Pro
(1) G3 Reader for doorway or input for an additional door (second hub required)
(2) Pocket key fob

Technical data:

. .

UA-Hub-Tür
Mechanical

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3 inches)

Weight

363 g (12.8 oz)

Favourite material

Polycarbonate

Mounting material

Polycarbonate

Hardware

Network interface

(5) 10/100/1000 Base-T

Power method

PoE++
UL 294 Class 2 power-limited power supply
UL 60950-1/62368-1 LPS/PS2 power supply

Max. Power consumption

Without PoE output: 30W
With PoE output: 50W

PoE input

50 V direct current, 1 A

PoE output

PoE passthrough, (4) PoE, 50 V DC, 20 W in total

LEDs

Whiteß/Blue (learn more)

Button

(1) Factory reset

Digital input

Exit request/entry request/remote unlocking/position sensor

Dry exit relay

Inhibit: 30 V DC, 1 A
Aux: 30 V DC, 1 A

Powered output relay

Lock: 12 V DC, 1 A
Aux: 12 V DC, 0.33 A
12 V DC, 0.33 A

Operating environment

Suitable for indoor use only

Operating ambient temperature

0 to 40 °C (32 to 104 °F)

Humidity during operation

5 to 95 % non-condensing

UL 294 level

First attack: Level I
Line safety: Level I
Endurance: Level I
Standby power: Level I

UL 294 declaration

Compliance with IEEE 802.3 specifications (at or af) has not been verified under UL 294.
The equipment shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 quality

Grade: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Information about the wiring

Requirements for the wire cross-section (AWG)

Total length to the device	Output load current at 12 V DC
Total length to the device	100 mA	250 mA	500 mA	1A
6.1 m (20 feet)	22	22	22	18
15.2 m (50 feet)	22	22	22	18
30.5 m (100 feet)	22	22	18	18

UACC cable lock relay (18 AWG) is recommended

Requirements for PoE cabling

The minimum permissible conductor diameter for the connection between PSE or Power Injector and PD is 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables.

UA-G3-Pro
Mechanical

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6 inches)

Weight

136 g (4.8 oz)

Favourite material

Polycarbonate, glass

Mounting material

Aluminium alloy

Mounting

Wall bracket (included in the scope of delivery)
Gangbox bracket (included in the scope of delivery)
Angle bracket (optional
) Junction box (optional)

Weather resistance

IP55

Hardware

Network interface

(1) GbE RJ45 connection

Connectivity

BLE 4.2
NFC

Power method

PoE
UL 294 Class 2 power-limited power supply
UL 60950-1/62368-1 LPS/PS2 power supply

Supported voltage range

48 V direct current

Max. Power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensor

Proximity sensor

Angle of view of the camera

H: 96.67°, V: 123.15°, D: 153.11°

Microphone

Yes

Speaker

(1) 4 Ohm, 1.5 W

LEDs

R/G/B/W/Amber-
Flash

Button

(1) Factory reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0

Operating environment

Außen area

Operating ambient temperature

Gerät: -30 to 45 °C (-22 to 113 °F)
Display:* -10 to 45 °C (14 to 113 °F)
*The display is switched off when the ambient temperature is above/below the operating temperature of the display, but other functions remain functional. (Valid from firmware v1.3.28)

Humidity during operation

5 to 90 % non-condensing

Software information

The software version of a product can be checked at https://unifi.ui.com üft.

UL 294 level

First attack: Level I
Line safety: Level I
Endurance: Level I
Standby power: Level I

UL 294 declaration

Compliance with IEEE 802.3 specifications has not been verified under UL 294.
The equipment shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Requirements for PoE cabling

The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site.
The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ⁾ for patch cables; 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables.

CAN/ULC-60839-11-1 quality

Note assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

LED

System

Permanently blue: Accepted/device is ready
Permanently white: &accepted
Off Flashing white/blue: Firmware is being updated
Strobe red: Emergency lockout
Steady orange: Indication that the operating temperature has been exceeded or fallen below

UA-G3
Mechanical

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4 inches)

Weight

82 g (2.9 oz)

Favourite material

Polycarbonate, glass

Mounting material

Aluminium alloy

Mounting

In the wall, junction box

Weather resistance

IP55

Hardware

Network interface

(1) 10/100 MbE RJ45 connection

Connectivity

BLE 4.1
NFC

Power method

PoE
UL 294 Class 2 power-limited power supply
UL 60950-1/62368-1 LPS/PS2 power supply

Supported voltage range

48 V direct current

Max. Power consumption

5 W

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 Ohm, 0.7W

LEDs

Pass-through white: &pending acceptance
Continuously blue: &accepted
Alternating white/blue: Firmware update
Flashing red: Emergency
Lock Continuously green: Emergency evacuation
(2) Flashing blue quickly: NFC credentials authenticated
(2) Flashing red quickly: Authentication of NFC credentials failed
Breathing blue: Ready to register the NFC cards

Button

(1) Factory reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa (ID only)
NFC forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0

Operating environment

Außen area

Operating ambient temperature

-30 to 45 °C (-22 to 113 °F)

Humidity during operation

5 to 90 % non-condensing

Software information

The software version of a product can be checked at https://unifi.ui.com üft.

UL 294 level

First attack: Level I
Line safety: Level I
Endurance: Level I
Standby power: Level I

UL 294 declaration

Requirements for PoE cabling

CAN/ULC-60839-11-1 quality

Note assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-
Pocket mechanism

Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.3 inches)

Weight

16 g (0.56 oz)

Favourite material

Polycarbonate, stainless steel, silicone rubber

Weather resistance

IP54

Hardware

NFC frequency

13.56 MHz

NFC technology

ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary security protocol

Operating ambient temperature

-10 to 45 °C (14 to 113 °F)

Humidity during operation

10 to 90 % non-condensing

Certification
