Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • PoE Budget 600W • 24x PoE bt • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24-PoE

Preview: Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • PoE Budget 600W • 24x PoE bt • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24-PoE

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 239782
vendor: Ubiquiti
mnufacturer no.: USW-Pro-HD-24-PoE
weight: 6.5kg
warranty: 12 months
Do you have any questions concerning this product?

Professional Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++ and (4) 10G... more

Close menu

Product information "Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • PoE Budget 600W • 24x PoE bt • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24-PoE"

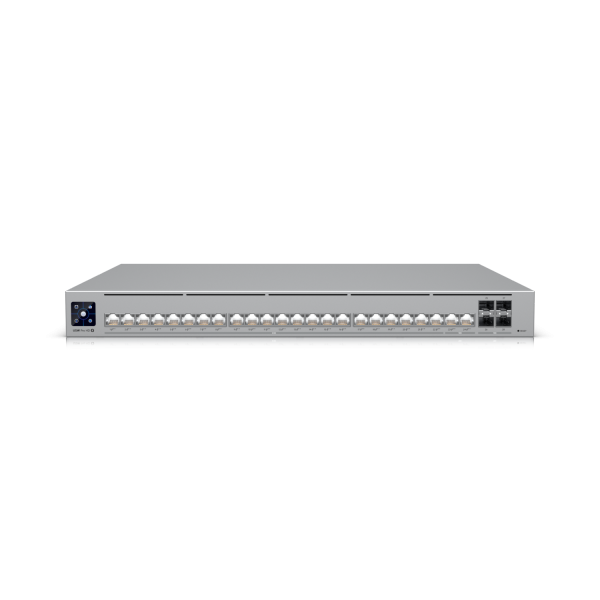

Professional Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++ and (4) 10G SFP+ ports.

Highlights:

Etherlighting™ ports that light up to indicate port location, speed/connection and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE PoE++ ports
(4) 10G SFP+ ports
Ready for DC emergency power supply**
600 W total PoE availability

_{*Couple with UniFi Etherlighting patch cables for optimal brightness.

**Requires UniFi RPS}

_{Technical data:}

Mechanical
Dimensions	442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7 inches)
Weight	Without mounting brackets: 6.4 kg (14.1 lb) With mounting brackets: 6.5 kg (14.3 lb)
Handling material	SGCC steel
Hardware
Management interface	Ethernet in-band
Network interface	(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports (22) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 10/1G SFP+ ports
PoE interface	(24) 60W PoE++ (pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-)
Total non-blocking throughput	115 Gbit/s
Switching power	230 Gbit/s
Forwarding tariff	171.12 Mpps
Performance method	(1) Universal input, 100—240 V AC, 50/60 Hz (1) USP-RPS DC input
Power supply	AC/DC, internal, 660 W
Supported voltage range	100–240 V alternating current
Max. Power consumption	56 W (without PoE output)
Total available PoE	600 W
Max. PoE power per port through PSE	PoE: 15.4 W PoE+: 30 W PoE++: 60 W
PoE mode voltage range	PoE: 44–57 V PoE+: 50–57 V
LCM display	(1) 1.3-inch touchscreen
Button	Factory reset
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	10 to 90 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Output rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs QoS Per AV
Layer 3 functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Speed/connection localise Native VLAN/Network
SFP+	Speed/connection localise Native VLAN/Network
LEDs
System	Status
RPS	Status
Application requirements
UniFi network	Version 8.6.9 and higher
