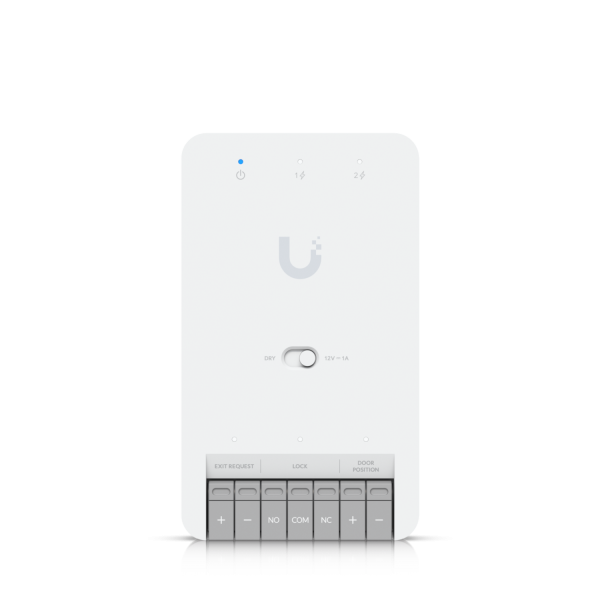

Ubiquiti UniFi Access Door Hub Mini • UA-Hub-Door-Mini
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 239834
- vendor: Ubiquiti
- mnufacturer no.: UA-Hub-Door-Mini
- EAN No.: 810084698839
- weight: 0.19kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact access control hub for a single door.
Highlights:
(1) Lock connection (12V and... more
Product information "Ubiquiti UniFi Access Door Hub Mini • UA-Hub-Door-Mini"
Compact access control hub for a single door.
Highlights:
- (1) Lock connection (12V and dry switchable)
- (2) Additional inputs (sensor and button)
- Connection and power supply via PoE++
- Connect up to two UniFi Access Readers or Protect Cameras
Technical data:
.
| Mechanical | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1 inches) | ||||||||||||||||||||||||||
| Weight | 190 g | ||||||||||||||||||||||||||
| Favourite material | Polycarbonate, metal | ||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||
| Network interface | (3) GbE RJ45 ports | ||||||||||||||||||||||||||
| Power method | PoE++ | ||||||||||||||||||||||||||
| Max. Power consumption | Without PoE output: 19 W With PoE output: 50 W |
||||||||||||||||||||||||||
| PoE input | 50 V direct current, 1 A | ||||||||||||||||||||||||||
| PoE output | (2) PoE ports, 31 W in total | ||||||||||||||||||||||||||
| Button | (1) Factory reset (1) Dry/Wet switch |
||||||||||||||||||||||||||
| Digital input | Prompt to leave/position sensor | ||||||||||||||||||||||||||
| Output relay | Dry: 30 V DC, 1 A Wet: 12 V DC, 1 A |
||||||||||||||||||||||||||
| Recommended max. cable length |
|
||||||||||||||||||||||||||
| Requirements for PoE cabling | The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site. The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ) for patch cables; 24 AWG (0.21 mm2 ) for horizontal or riser cables. |
||||||||||||||||||||||||||
| Operating environment | Suitable for indoor use only | ||||||||||||||||||||||||||
| Operating ambient temperature | -10 to 40 °C (14 to 104 °F) | ||||||||||||||||||||||||||
| Humidity during operation | 5 to 90 % non-condensing | ||||||||||||||||||||||||||
| Software information | The software version of a product can be checked at https://unifi.ui.com üft. | ||||||||||||||||||||||||||
| Certifications | CE, FCC, IC | ||||||||||||||||||||||||||
| Document number and issue date or revision status | UA-Hub-Tür-Mini, V01 | ||||||||||||||||||||||||||
| Software | |||||||||||||||||||||||||||
| Administrative application | UniFi Access: Version 2.5.2 and higher | ||||||||||||||||||||||||||
| LEDs | |||||||||||||||||||||||||||
| PoE input | System status | ||||||||||||||||||||||||||
| PoE output | Cable status/activity | ||||||||||||||||||||||||||
| Input/output relay | Line status/activity |
