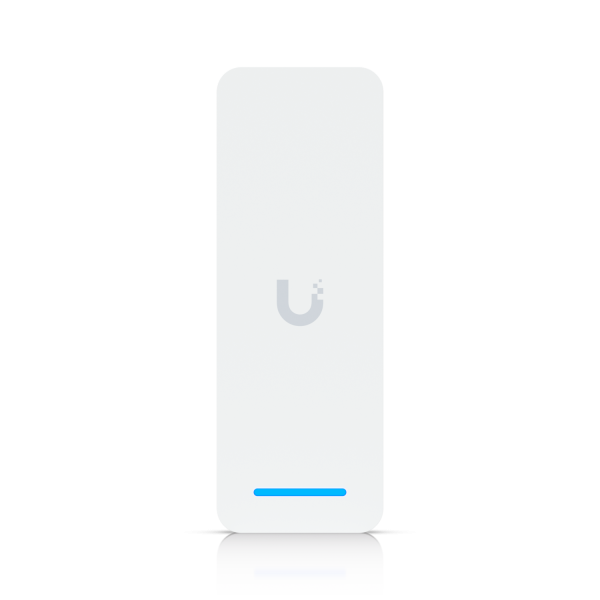

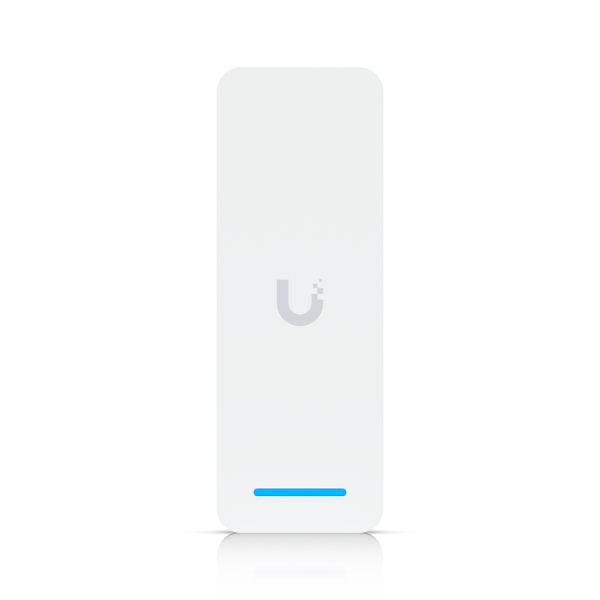

Ubiquiti Access Reader • PoE+ • Lock terminal (12V/1A) • Exit request input • UniFi • UA-Ultra
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 231840
- vendor: Ubiquiti
- mnufacturer no.: UA-Ultra
- weight: 0.14kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Tamper-proof access reader with integrated hub for complete access control of a single door... more
Product information "Ubiquiti Access Reader • PoE+ • Lock terminal (12V/1A) • Exit request input • UniFi • UA-Ultra"
Tamper-proof access reader with integrated hub for complete access control of a single door from one device.
(1) Lock connector (12V/1A)
(1) Enter the exit request
Unlocking with an NFC card or the UniFi Identity mobile app
IP55 weather resistance (-30 to 40° C)
Technical specifications
| Mechanical | |
|---|---|
| Maße | 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5 inches) |
| Weight | 140 g |
| Features | Polycarbonate, aluminium alloy |
| Montage | Wall mount, group box mount |
| Weatherproof | IP55 |
| Hardware | |
| Network interface | 10/100 MbE RJ45 connection |
| Connectivity | Ethernet BLE 4.2 |
| Digital input | (1) Exit request |
| Lock terminals | (1) 12 V, 1 A |
| Performance method | PoE+ |
| Max. Power consumption | 18W |
| ESD/EMP protection | Air: ±8kV, Contact: ±4kV |
| LEDs | R/G/S/W |
| key | (1) Factory reset |
| Sabotage contact | Yes |
| Loudspeaker | Summer |
| NFC frequency | 13.56 MHz |
| NFC read range | < 50 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC-Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire |
| Operating ambient temperature | -30 to 40 °C (-22 to 104 °F) |
| Humidity during operation | 5 to 90 % non-condensing |
| Certifications | CE, FCC, IC |
