Ubiquiti Enterprise Fortress Gateway Â• 2x SFP28 Â• 2x SFP+ Â• 2x 2,5 GbE Â• UniFi Â• EFG

Preview: Ubiquiti Enterprise Fortress Gateway Â• 2x SFP28 Â• 2x SFP+ Â• 2x 2,5 GbE Â• UniFi Â• EFG

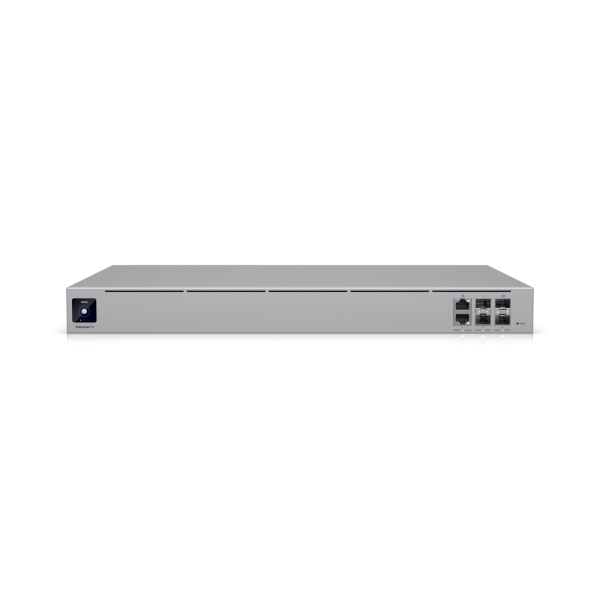

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 231899
vendor: Ubiquiti_Enterprise
mnufacturer no.: EFG
EAN No.: 0810354025716
weight: 8.33kg
warranty: 12 months
Do you have any questions concerning this product?

25G Cloud Gateway with support for over 500 UniFi devices/üte/üover 5.000 clients, 12.5 Gbps... more

Close menu

Product information "Ubiquiti Enterprise Fortress Gateway Â• 2x SFP28 Â• 2x SFP+ Â• 2x 2,5 GbE Â• UniFi Â• EFG"

25G Cloud Gateway with support for over 500 UniFi devices/üte/üover 5.000 clients, 12.5 Gbps IPS routing and complete high availability.

Executes UniFi Network for full-stack network management

Shadow Mode High Availability with automatic failover ensures uninterrupted connectivity (VRRP)*

12.5 Gbit/s Routing with IDS/IPS

Licence-free real-time inspection of encrypted packets with NeXT AI Inspection (SSL/TLS decryption)

(2) 25G SFP28**, (2) 10G SFP+** and (2) 2.5 GbE RJ45 ports (all LAN/WAN remappable)

(2) included hot-swap power supplies for power redundancy

1.3-inch touchscreen

Includes 90 days professional phone support ***

_{*Requires UniFi OS 4.0 and higher. Must be paired with another EFG.

**Pair it with an official SFP28 module , SFP+ module or SFP+ to RJ45 adapter for the best experience.}

Technical specifications

Mechanical
Maße	442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight	3.4 kg (7.5 pounds)
Favourite materials	Front panel: CNC aluminium. Top cover/base: SGCC steel
Hardware
Processor	Quad-Core ARM® Cortex®-A57 with 1.7 GHz
Memory information	2 GB DDR4
Management interface	Ethernet
Network interface	LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port
Power supply method USA worldwide	(1) Universal AC input, 125 V AC, 2.7 A max, 60 Hz (1) RPS direct current input, 11.5 V direct current, 2.87 A (1) Universal alternating current input, 200–240 V alternating current, 1.7 A max., 50/60 Hz (1) RPS DC input, 11.5 V DC, 2.87 A
Power supply	AC/DC, internal, 50 W
Max. Energy consumption	30W
ESD/EMP protection	Air: ± 15 kV, Contact: ± 8 kV
LCM display	(1) 1.3-inch touchscreen
key	Factory settings reset
Operating temperature	-10 to 40 °C (14 to 104 °F)
Operating humidity	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Gateway functions
Performance	Redundant WAN with failover and load balancing. WLAN QoS with UniFi APs . Application-, domain- and country-based QoS. Identification of applications and device types. Additional Internet failover with LTE backup. Internet quality and outage reports
Next generation security	Application-specific firewall rules. Signature-based IPS/IDS threat detection. Content, country, domain and advertising filtering. VLAN/subnet-based traffic segmentation. Complete stateful firewall
Extended cross-linking	Licence-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-Click-Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support When paired with a Cloud Key or official UniFi hosting . *When paired with a cloud key.
LEDs
Ethernet	Grün/Bernstein
SFP+	Whiteß Grün
AC socket/RPS	Blue
Software
Management application	UniFi network: version 5.14.11 and higher
