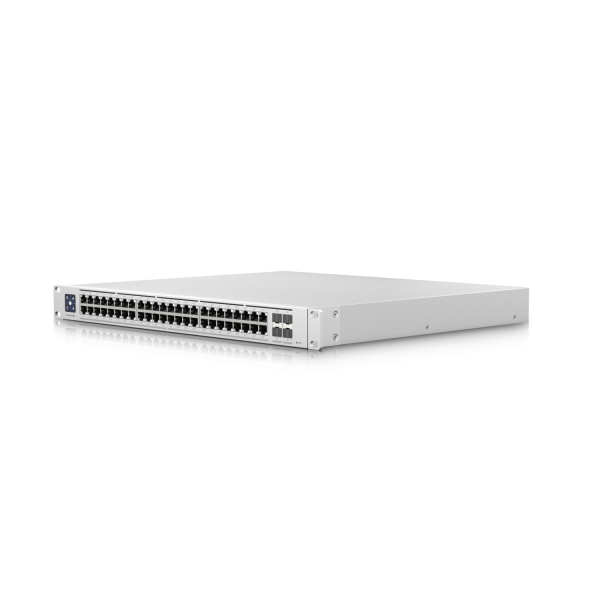

Ubiquiti Unifi Switch Enterprise 48 POE / 720W / 48x 2,5G RJ45 / 4x 10G SFP+ / Layer 3 / USW-Enterprise-48-POE
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 206202
- vendor: Ubiquiti
- mnufacturer no.: USW-Enterprise-48-PoE
- EAN No.: 8100100747682
- weight: 6.2kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
(48) 2.5 GbE PoE+ ports
(4) 10G... more
Product information "Ubiquiti Unifi Switch Enterprise 48 POE / 720W / 48x 2,5G RJ45 / 4x 10G SFP+ / Layer 3 / USW-Enterprise-48-POE"
A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
(48) 2.5 GbE PoE+ ports
(4) 10G SFP+ ports
720W total PoE availability
DC power backup-ready
Layer 3 switching
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 44 x 400 mm (17.4 x 1.7 x 15.7") |
| Weight | Without mounting brackets: 6.2 kg (13.67 lb) With mounting brackets: 6.3 kg (13.89 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 160 Gbps |
| Switching capacity | 320 Gbps |
| Forwarding rate | 238.095 Mpps |
| Power method | (1) Universal AC input, 100—240V AC, 10A Max, 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A |
| Power supply | AC/DC, internal, 100—240V, 10A Max. |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 150W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port by PSE | PoE+: 34.2W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| Services | SMB Layer 3 PoE GbE Switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
