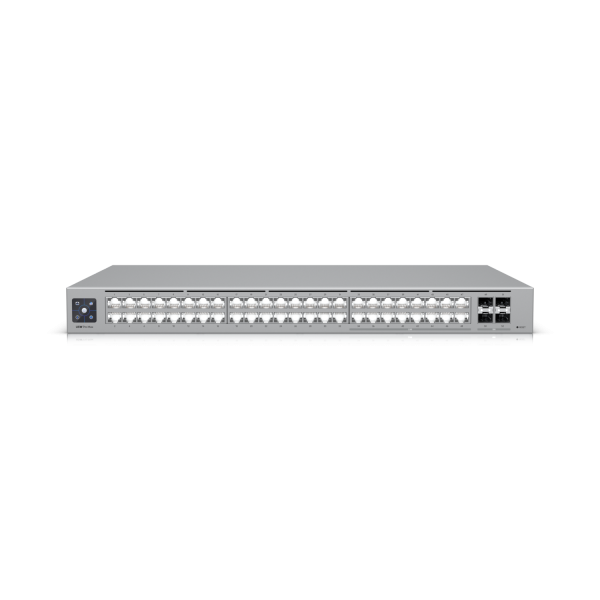

Ubiquiti UniFi Switch Pro Max / 48 Port / 16 x 2.5 GbE / 32 x GbE / 4 SFP+ / USW-Pro-Max-48
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 224154
- vendor: Ubiquiti
- mnufacturer no.: USW-Pro-Max-48
- EAN No.: 8100846927454
- weight: 4.9kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Etherlighting™ ports that... more
Product information "Ubiquiti UniFi Switch Pro Max / 48 Port / 16 x 2.5 GbE / 32 x GbE / 4 SFP+ / USW-Pro-Max-48"
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE RJ45 ports
(32) GbE RJ45 ports
(4) 10G SFP+ ports
DC power backup ready
Managed with UniFi Network 8.0.24 and later
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 4.8 kg (10.6 lb) With mounting brackets: 4.9 kg (10.8 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| Total non-blocking throughput | 112 Gbps |
| Switching capacity | 224 Gbps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
