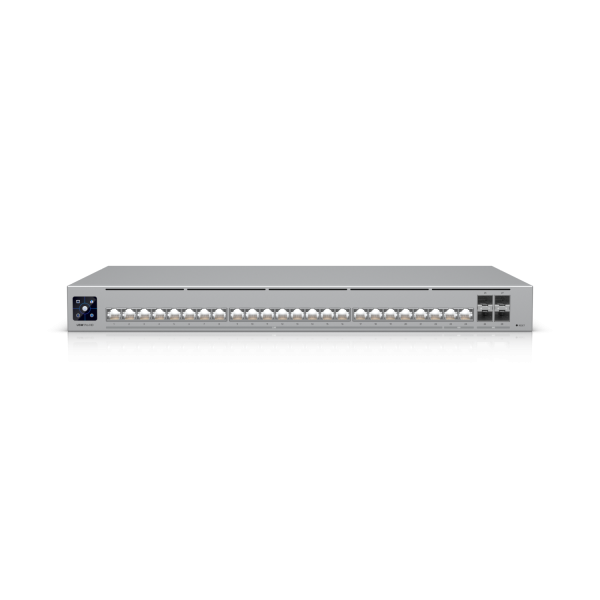

Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24

Preview: Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 239783
vendor: Ubiquiti
mnufacturer no.: USW-Pro-HD-24
weight: 4.3kg
warranty: 12 months
Do you have any questions concerning this product?

Professional Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE and (4) 10G SFP+ ports.... more

Close menu

Product information "Ubiquiti Switch full managed Layer3 28 Port • 22x 2,5 GbE • 2x 10 GbE • 4x SFP+ • 19" • UniFi • USW-Pro-HD-24"

Professional Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE and (4) 10G SFP+ ports.

Highlights:

Etherlighting™ ports that light up to indicate port location, speed/connection and native VLAN/network*
(22) 2.5 GbE, (2) 10 GbE ports
(4) 10G SFP+ ports
Ready for DC emergency power supply**

_{*Couple with UniFi Etherlighting patch cables for optimal brightness.

**Requires UniFi RPS}

_{Technical data:}

Mechanical
Dimensions	442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7 inches)
Weight	Without mounting brackets: 4.2 kg (9.2 lb) With mounting brackets: 4.3 kg (9.4 lb)
Walking material	SGCC steel
Hardware
Management interface	Ethernet in-band
Network interface	(2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports (22) 2.5/1 GbE, 100/10 MbE RJ45 ports (4) 10/1G SFP+ ports
Total non-blocking throughput	115 Gbit/s
Switching power	230 Gbit/s
Forwarding tariff	171.12 Mpps
Performance method	(1) Universal input, 100—240 V AC, 50/60 Hz (1) USP-RPS DC input
Power supply	AC/DC, internal, 60 W
Supported voltage range	100–240 V alternating current
Max. Power consumption	50 W
LCM display	(1) 1.3-inch touch screen
Button	Factory reset
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	10 to 90 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Output rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs QoS Per AV
Layer 3 functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Network isolation with ACLs
Etherlighting™
Ethernet	Speed/connection localise Native VLAN/Network
SFP+	Speed/connection localise Native VLAN/Network
LEDs
System	Status
RPS	Status
Application requirements
UniFi network	Version 8.6.9 and higher
