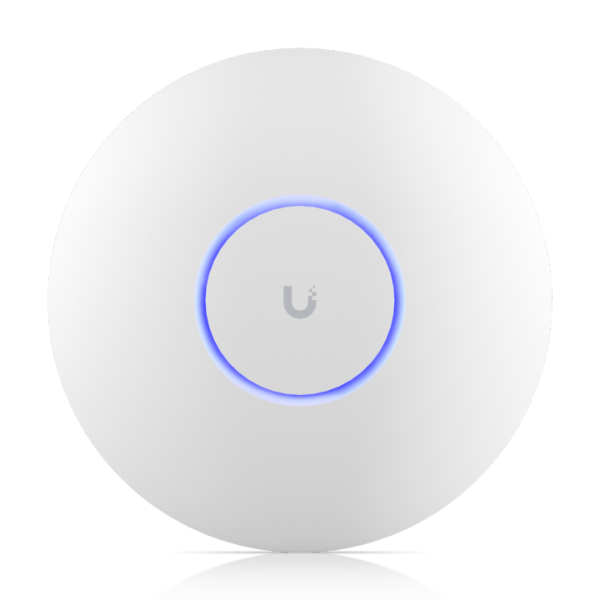

Ubiquiti Unifi Access Point Pro / WiFi 7 / Indoor / 2.5 GbE uplink / 300 User+ / U7-Pro
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 223960
- vendor: Ubiquiti
- mnufacturer no.: U7-Pro
- EAN No.: 8100846936500
- weight: 1.368kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.... more
Product information "Ubiquiti Unifi Access Point Pro / WiFi 7 / Indoor / 2.5 GbE uplink / 300 User+ / U7-Pro"
Ceiling-mount WiFi 7 AP with 6 GHz support, 2.5 GbE uplink, and 9.3 Gbps over-the-air speed.
WiFi 7 with 6 GHz support
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Technical Specifications
| Mechanical | ||
|---|---|---|
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") | |
| Weight | 680 g (1.5 lb) | |
| Enclosure materials | Polycarbonate, metal | |
| Mount material | Mounting bracket: stainless steel (SUS304) Backing plate: galvanized steel (SGCC) |
|
| Hardware | ||
| Networking interface | (1) 2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 21W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
|
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 2 x 2 2 x 2 |
|
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps 2882 Mbps 5765 Mbps |
|
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi 5.8 dBi |
|
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall/ceiling (Included) | |
| Operating temperature | -30 to 60° C (-22 to 140° F) | |
| Operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.0.7 and later | |
| UniFi OS | Version 3.2 and later |
