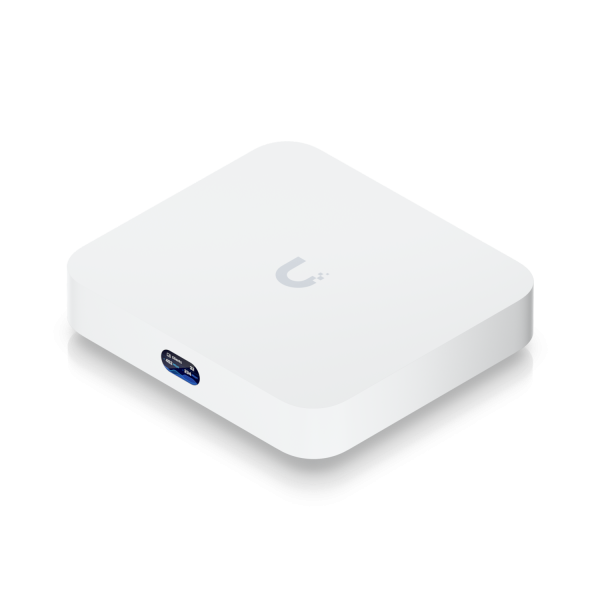

Ubiquiti UniFi Cloud Gateway Ultra / 1x 1/2,5 GbE RJ45-Port WAN / 4x GbE RJ45-Ports LAN / 1 Gbps routing IDS/IPS / UCG-Ultra
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 227515
- vendor: Ubiquiti
- mnufacturer no.: UCG-Ultra
- EAN No.: 8100846952036
- weight: 0.85kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and... more
Product information "Ubiquiti UniFi Cloud Gateway Ultra / 1x 1/2,5 GbE RJ45-Port WAN / 4x GbE RJ45-Ports LAN / 1 Gbps routing IDS/IPS / UCG-Ultra"
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
Runs UniFi Network for full-stack network management
Manages 30+ UniFi Network devices and 300+ clients
1 Gbps routing with IDS/IPS
Multi-WAN load balancing
0.96" LCM status display
USB-C powered (adapter included)
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet Bluetooth |
| Networking interface | LAN: (4) GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 6.2W |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later |
