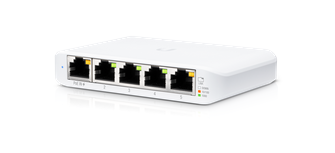

Ubiquiti UniFi Switch Flex Mini / Input 1x POE+ / 4x RJ45 Gigabit / USW-Flex-Mini
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 183602
- vendor: Ubiquiti
- mnufacturer no.: USW-Flex-Mini
- EAN No.: 8178820296988
- weight: 0.15kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
(4)... more
Product information "Ubiquiti UniFi Switch Flex Mini / Input 1x POE+ / 4x RJ45 Gigabit / USW-Flex-Mini"
A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
(4) GbE ports
(1) GbE PoE input port for power
Optional powering with included 5V, 1A USB-C adapter*
*Adapter included with single unit purchases.
Note. EU version comes with EU power plug only.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 107.2 x 70.2 x 21.2 mm (4.2 x 2.8 x 0.8") |
| Weight | 150 g (5.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) GbE RJ45 ports |
| Total non-blocking throughput | 5 Gbps |
| Switching capacity | 10 Gbps |
| Forwarding rate | 7.44 Mpps |
| Power method | USB Type C, 5V PoE/PoE+, 44—57V DC, 0.05—0.04A |
| Power supply | 5V, 1A power adapter* *Only single-unit packages include the 5V, 1A USB-C power adapter. |
| Supported voltage range | USB Type C: 4.7—5.3V DC PoE/PoE+: 44—57V DC |
| Max. power consumption | 2.5W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 5.12.5 and later |
