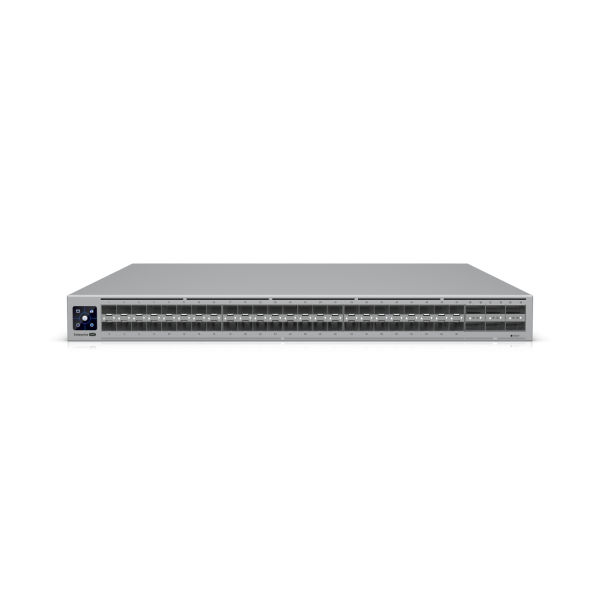

Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation

Preview: Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 235193
vendor: Ubiquiti_Enterprise
mnufacturer no.: ECS-Aggregation
EAN No.: 810084697139
weight: 17.28kg
warranty: 12 months
Do you have any questions concerning this product?

Project notification at ubiquiti@allnet.de. 1.8 Tbps high-density 100G/25G Layer 3... more

Close menu

Product information "Ubiquiti Switch full managed Layer3 54 Port • 6x QSFP28 • 48x SFP28 • 19" • UniFi • ECS-Aggregation"

Project notification at ubiquiti@allnet.de.

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for highly reliable system design.

(48) 25G SFP28 and (6) 100G QSFP28 ports

Support for Multi-Chassis Link Aggregation (MC-LAG)*

Support for automatic Layer 3 failover (VRRP)**

Dynamic BGP routing***

(2) hot-swappable power supply modules with 1+1 redundancy included in the scope of delivery

(5) hot-swap fan modules with 4+1 redundancy included in the scope of delivery

_{*Must be paired with another Enterprise Campus Aggregation

. **Planned for the next version of the UniFi Network Application.

***OSPF support is planned for an upcoming version of the UniFi Network Application.}

Mechanical
Dimensions	442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5 inches)
Weight	9.9 kg
Housing material	SGCC steel
Sliding rail support	The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and post depths from 650 to 1,000 mm (25.6–39.4").
Hardware
Management interface	Ethernet in-band
Network interface	(6) 40G/100G QSFP28 ports (48) 10G/25G SFP28 ports* 1 Gbit/s port speed is not supported
Total non-blocking throughput	1.8 Tbit/s
Switching power	3.6 Tbit/s
Forwarding tariff	2.3 basis points
Performance method	(2) Universal input, 100—240 V AC
Power supply	(2) Hot-swappable AC/DC 550W power supply modules
Supported voltage range	100–240 V alternating current
Max. Power consumption	340 W
ESD/EMP protection	Air: ± 12kV, contact: ± 8kV
Services	SMB Layer3 100G/25G fibre optic switch
LCM display	(1) 1.3-inch touch screen
Operating ambient temperature	-5 to 40 °C (23 to 104 °F)
Humidity during operation	10 to 95 % non-condensing
Certifications	CE, FCC, IC
Switching functions
Layer 2 functions	IGMP snooping STP/RSTP with prioritisation and deactivation at port level Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting Blocking of MAC addresses Flow control Jumbo frames Proprietary loop protection DHCP snooping/guarding Egress rate limiting LLDP-MED Port restricted by MAC Device isolation with ACLs MC-LAG support
Layer 3 functions	DHCP for locally managed networks DHCP relay Inter-VLAN routing between networks on the same switch Static routing between local networks Automatic failover (VRRP)* *Support is planned for the next version of the UniFi Network Application.
Etherlighting™
SFP28/QSFP28	Localisation of Speed/connection Native VLAN/network
LEDs
System	Status
Application requirements
UniFi network	Version 8.5.6 and higher
