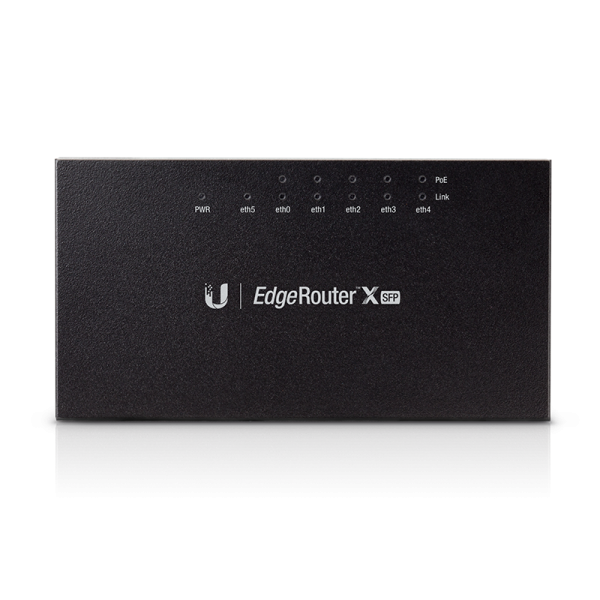

Ubiquiti EdgeRouter X, 6-port Gigabit Router, 1x SFP In, pas
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 121649
- vendor: Ubiquiti
- mnufacturer no.: ER-X-SFP
- EAN No.: 0810354022203
- weight: 0.7kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an... more
Product information "Ubiquiti EdgeRouter X, 6-port Gigabit Router, 1x SFP In, pas"
Compact but powerful router sporting (5) Gigabit RJ45 ports with passive PoE support and an SFP port.
(5) GbE RJ45 ports with 24V passive PoE
(1) SFP port
50W total PoE availability
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 142 x 75 x 23 mm (5.59 x 2.95 x 0.91") |
| Weight | 215 g (7.58 oz) |
| Hardware | |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Code Storage | 256 MB NAND |
| Max. Power Consumption | 5W |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Power Supply | External AC/DC Adapter |
| Supported Voltage Range | 9 to 26VDC |
| Buttons | Reset |
| LEDs | Power, Link/Activity (6), PoE (5) |
| Wall Mount | Yes |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| Networking Interfaces | |
| Data/PoE Input Port | (5) 10/100/1000 RJ45 Ports |
| Data Port | (1) 100/1000 SFP Port |
| PoE with 24VDC Power Adapter | |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 12W (24V) |
| Max. PoE Wattage Combined for All 5 Data Ports | 50W |
| PoE Method | Passive |
