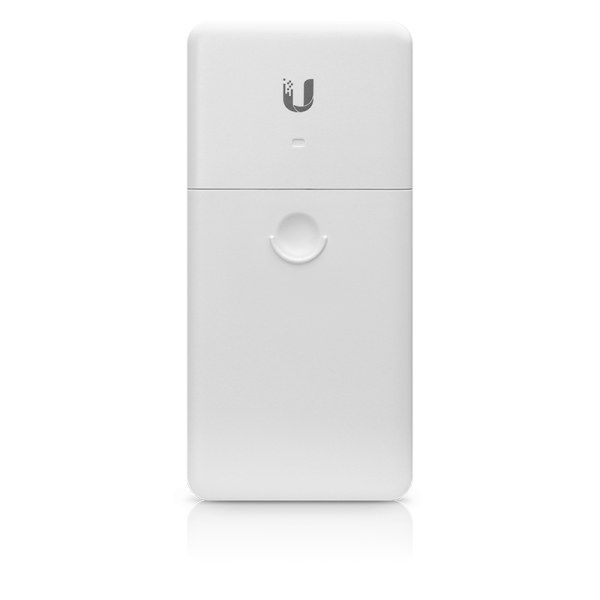

Ubiquiti NanoSwitch, N-SW
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 148307
- vendor: Ubiquiti
- mnufacturer no.: N-SW
- EAN No.: 817882021708
- weight: 0.601kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
The NanoSwitch (N-SW) is an outdoor, 4-port Gigabit switch with PoE pass-through.
(3) GbE... more
Product information "Ubiquiti NanoSwitch, N-SW"
The NanoSwitch (N-SW) is an outdoor, 4-port Gigabit switch with PoE pass-through.
(3) GbE RJ45 ports with 24V passive PoE
24W PoE supply
Outdoor, weather-resistant enclosure
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 196 x 934 x 32 mm ( 7.73 x 3.68 x 1.28 ") |
| Weight | 269 g (9.5 oz) |
| Enclosure Characteristics | White Polycarbonate |
| Hardware | |
| On-Board Flash Storage | 4Kbits |
| Total Non-Blocking Line Rate | 4Gbps |
| TYP. Power Consumption | 1.5W |
| Power Method | Passive 24V PoE-in |
| Supported Voltage Range | Passive 24V PoE-in |
| Networking Interfaces | (4) 10/100/1000 Mbps Ethernet RJ45 |
| PoE Interfaces | Passive 24V PoE-in |
| Max PoE+ Wattage per Port by PSE | 24V@1A per port / Total 24V@1.5A for three ports |
| Passive PoE Max wattage per port | 24W per port / Total 36W for three ports |
| Operating Temperature | -30C ~ 70C |
| Operating Humidity | 5 to 95% Non-Condensing |
