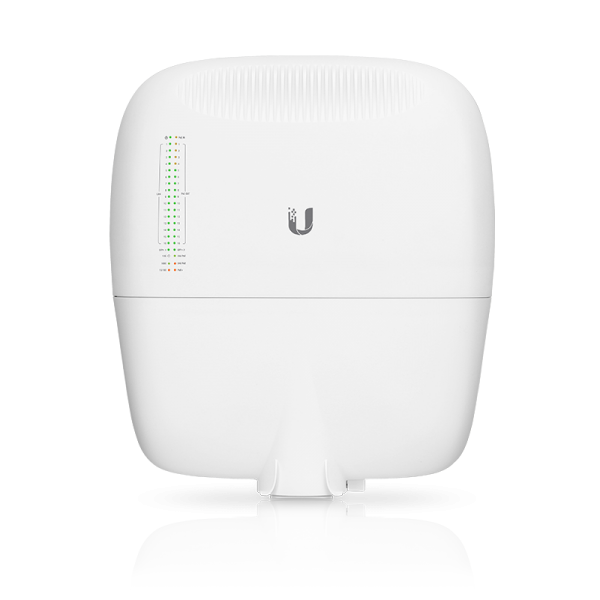

Ubiquiti EdgePoint WISP Control Point with FiberProtect, EP-S16
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 127661
- vendor: Ubiquiti
- mnufacturer no.: EP-S16
- EAN No.: 0810354024283
- weight: 5.877kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports.... more
Product information "Ubiquiti EdgePoint WISP Control Point with FiberProtect, EP-S16"
Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports.
Layer-2 switch with some layer-3 capabilities
(16) GbE RJ45 ports
(2) 1/10G SFP+ ports
Weatherproof enclosure for outdoor use
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Without Wall-Mount: 326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50") With Wall-Mount: 326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15") |
| Weight | Without Wall-Mount: 3.4 kg (7.50 lb) With Wall-Mount: 3.8 kg (8.38 lb) |
| Enclosure Characteristics | Diecast Aluminum Alloy, UV-Resistant Polycarbonate |
| Mount | Pole/Wall Mount |
| Wind Loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Max. Power Consumption | 40W (Excludes PoE Output) |
| Power Input* | (1) DC Terminal Block (2) RJ45 (Ports 1 and 2) *Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs. |
| Power Supply | Min. 54V / 0.8A (Excludes PoE Output Power) |
| VDC Input | 54V / 6A |
| Passive PoE Input* | (2) 54V / 1.5A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 and 2 *Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources. |
| Passive PoE Output | (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; - 3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) PoE/PoE+ or 24V/0.7A, 2-Pair (+ 4, 5; - 7, 8) Passive PoE, Ports 5 to 16 |
| Power Monitoring | (1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power |
| Supported Voltage Range | +42 to +56VDC (-48V is NOT Supported) |
| Button | Reset |
| LEDs System PoE In 1 to 16 SFP |
Power PoE Speed/Link/Activity, PoE Speed/Link/Activity |
| Ports Serial Console Port Data Ports |
(1) RJ45 Serial Port (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports |
| Operating Temperature | -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
