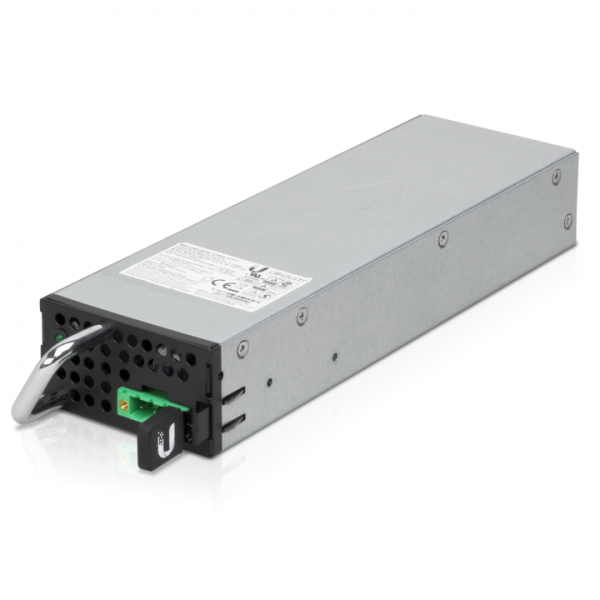

EdgePower-Module (150 W)

product pictures similar, may differ from the product description!

This product is not available at the moment. Delivery time upon request.

PSU module designed for use with the EdgePower EP-Supply (54V 150W model) 54V, 150W max.... more

Product information "EdgePower-Module (150 W)"

PSU module designed for use with the EdgePower EP-Supply (54V 150W model)

54V, 150W max. power output

Increase total power output up to 300W

Compatible with EdgePower EP-54V-150W

Technical Specifications

EP-54V-150W-AC
Power Method	AC/DC 150W for 110 - 240VAC Input, DC Terminal Block for 54V Output
Power Supply	AC/DC 150W for 110 - 240VAC Input
Voltage Range	AC/DC for 110-240VAC Input , 54V Output
LED	System On/Off
ESD/EMP Protection	Air ± 8kV; Contact ± 6kV
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	10 - 90% Noncondensing
Certifications	CE, FCC, IC
EP-54V-150W-DC
Power Method	DC/DC 150W for 22 - 60V Input, DC Terminal Block for 54V Output
Power Supply	DC/DC 150W for 22 - 60V Input
Voltage Range	DC/DC for 22 - 60V Input, 54V Output
Battery Type	2/3/4 Series Lead Acid Battery
Maximum Charging Voltage 2 Series 3 Series 4 Series	26.8 - 27.5V 40.2 - 41.2V 53.6 - 55V
Discharge Protection Voltage 2 Series 3 Series 4 Series	21.5V 32V 43V
Charging Current 2 Series 3 Series 4 Series	0.3A 0.3A 0.2A
LED	System On/Off
ESD/EMP Protection	Air ± 8kV; Contact ± 6kV
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
