EP-54V-150W
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 135850
- vendor: Ubiquiti
- mnufacturer no.: EP-54V-150W
- EAN No.: 810354023989
- weight: 3.42kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung

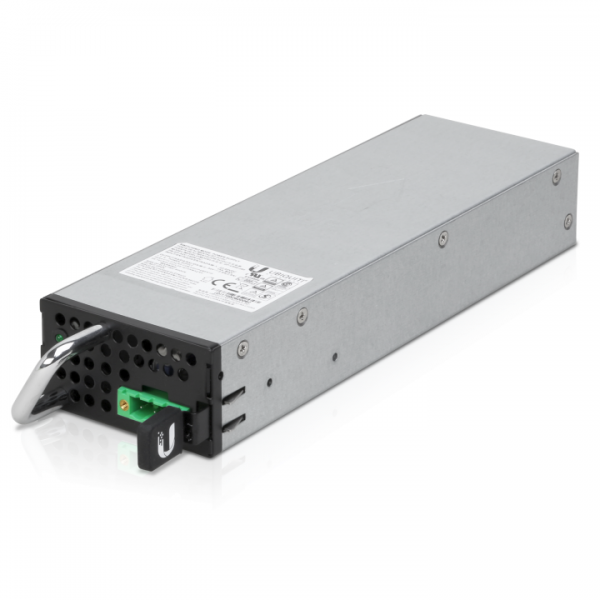

PSU module designed for use with the EdgePower EP-Supply (54V 150W model)
54V, 150W... more
Product information "EP-54V-150W"
PSU module designed for use with the EdgePower EP-Supply (54V 150W model)
54V, 150W max. power output
Increase total power output up to 300W
Compatible with EdgePower EP-54V-150W
Technical Specifications
| EP-54V-150W-AC | |
|---|---|
| Power Method | AC/DC 150W for 110 - 240VAC Input, DC Terminal Block for 54V Output |
| Power Supply | AC/DC 150W for 110 - 240VAC Input |
| Voltage Range | AC/DC for 110-240VAC Input , 54V Output |
| LED | System On/Off |
| ESD/EMP Protection | Air ± 8kV; Contact ± 6kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| EP-54V-150W-DC | |
| Power Method | DC/DC 150W for 22 - 60V Input, DC Terminal Block for 54V Output |
| Power Supply | DC/DC 150W for 22 - 60V Input |
| Voltage Range | DC/DC for 22 - 60V Input, 54V Output |
| Battery Type | 2/3/4 Series Lead Acid Battery |
| Maximum Charging Voltage 2 Series 3 Series 4 Series |
26.8 - 27.5V 40.2 - 41.2V 53.6 - 55V |
| Discharge Protection Voltage 2 Series 3 Series 4 Series |
21.5V 32V 43V |
| Charging Current 2 Series 3 Series 4 Series |
0.3A 0.3A 0.2A |
| LED | System On/Off |
| ESD/EMP Protection | Air ± 8kV; Contact ± 6kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
