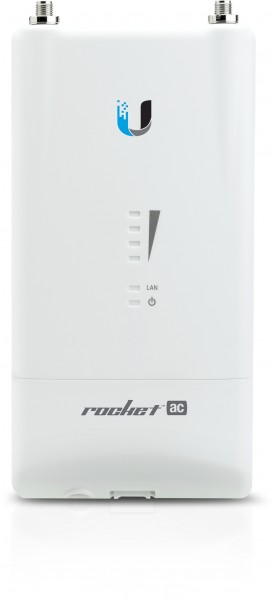

Ubiquiti Rocket R5AC-Lite AirMax outdoor client 5GHz
- stock: 0
- part no.: 114237
- vendor: Ubiquiti
- mnufacturer no.: R5AC-Lite
- EAN No.: 810354022708
- weight: 0.668kg
- Do you have any questions concerning this product?
Downloads
data sheet DE EU RoHS und REACH Erklärung
airMAX AC Technology for up to 500+ Mbps throughput.
5 GHz frequency band
500+ Mbps... more
Product information "Ubiquiti Rocket R5AC-Lite AirMax outdoor client 5GHz"
airMAX AC Technology for up to 500+ Mbps throughput.
5 GHz frequency band
500+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio
Technical Specifications
Mechanical | |
---|---|
Dimensions | 162 x 84 x 37 mm (6.4 x 3.3 x 1.5") |
Weight | 250 g (8.8 oz) |
Enclosure material | UV-stabilized plastic |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
Max. power consumption | 8.5W |
ESD/EMP protection | Air/contact ± 24kV |
RF connectors | (2) RP-SMA (waterproof) |
LEDs | Power, LAN, (4) signal strength |
Shock and vibration | ETSI300-019-1.4 |
Operating temperature | -40 to 80° C (-40 to 176° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Management Radio (MHz) | |
Worldwide | 5150 – 5875 MHz |
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
