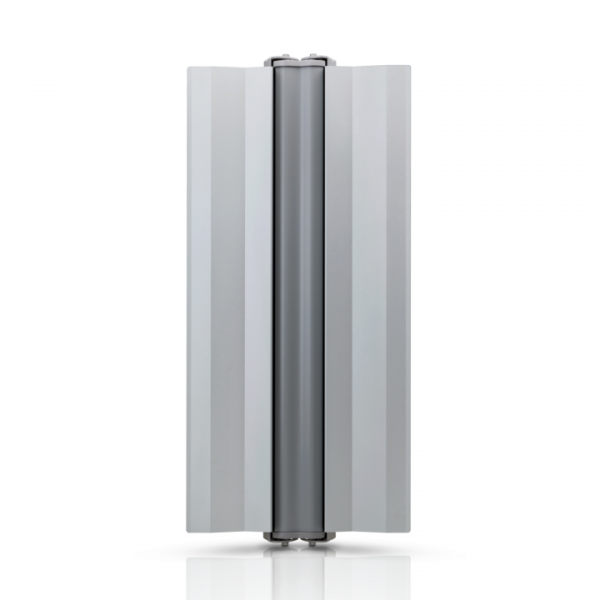

Ubiquiti 2GHz Variable Beam Base Station, 60-120deg, Titanium, w/Rocket kit
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 109066
- vendor: Ubiquiti
- mnufacturer no.: AM-V2G-Ti
- EAN No.: 810354021008
- weight: 9kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Custom-configurable 2.4 GHz antenna for any deployment.
Adjustable beamwidth configuration... more
Product information "Ubiquiti 2GHz Variable Beam Base Station, 60-120deg, Titanium, w/Rocket kit"
Custom-configurable 2.4 GHz antenna for any deployment.
Adjustable beamwidth configuration
Advanced RF isolation
Compatible with Rocket M2
Technical Specifications
| AM-V2G-Ti | |
|---|---|
| Dimensions | 773 x 372 x 120 mm (30.43 x 14.65 x 4.72") |
| Weight | With Mount: 6.4 kg (14.11 lb) |
| Frequency | 2.3-2.6 GHz |
| Beamwidth Angles | 60°/ 90°/ 120° |
| Gain (Beamwidth Dependent) |
17 dBi @ 60° 16 dBi @ 90° 15 dBi @ 120° |
| Electrical Downtilt | 4° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 640.5 N@ 200 km/h (144 lbf @ 125 mph) |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 25 dB Typical |
| F/B Ratio | 30 dB Typical |
| Max. VSWR | 1.5:1 |
| RF Connectors | 2 RP-SMA Connectors (Weatherproof) |
| Compatible Radios | RocketM2 Titanium RocketM2 |
| Mounting | Pole Mount (Kit Included) |
| ETSI Specification | EN 302 326 DN2 |
| Certifications | CE, FCC, IC |
