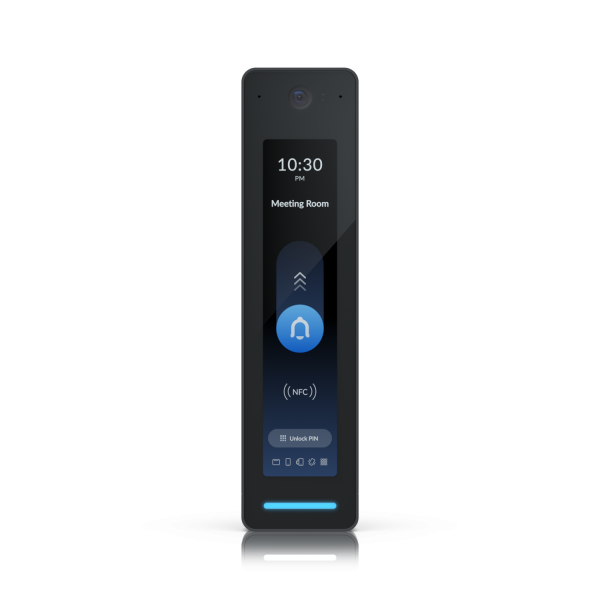

Ubiquiti UniFi Access Reader G2 Professional / UA-G2-Pro-Black

product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 227101
vendor: Ubiquiti
mnufacturer no.: UA-G2-Pro-Black
EAN No.: 810084692349
weight: 0.136kg
warranty: 12 months
Do you have any questions concerning this product?

Second-generation NFC card reader and intercom. Unlock using an NFC card or UniFi Identity... more

Close menu

Product information "Ubiquiti UniFi Access Reader G2 Professional / UA-G2-Pro-Black"

Second-generation NFC card reader and intercom.

Unlock using an NFC card or UniFi Identity mobile app

Doorbell for unlock with video of visitor and two-way intercom

Video works at ADA-compliant mounting height

PIN unlocking on the screen

Connects to UniFi Access Hub using PoE

IP55 rain resistance (-10 to 45° C)

Technical Specifications

Mechanical
Dimensions	160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
Weight	136 g (4.8 oz)
Enclosure material	Polycarbonate, glass
Mount material	Aluminum alloy
Mounting	Wall, gang box
Weatherproofing	IP55
Hardware
Networking interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 NFC
Power method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range	48V DC
Max. power consumption	6W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensor	Proximity sensor
Camera	4000 x 3000, 12 MP, 30 FPS
Microphone	Yes
Speaker	(1) 4 ohm, 1.5W
LEDs	R/G/B/W Flash
Button	(1) Factory-reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire
Operating environment	Outdoor use
Operating temperature	-10 to 45° C (14 to 113° F)
Operating humidity	5 to 90% noncondensing
Software information	The software version of a product can be checked at https://unifi.ui.com
UL 294 level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2-Pro/UA-G2-Pro-Black, V02
LED
System	Steady blue: Adopted/device is ready Steady white: Pending adoption Blinking white/blue: Upgrading firmware Strobing red: Emergency lockdown
Software
Management application	UniFi Access: Version 1.5.9 and later
