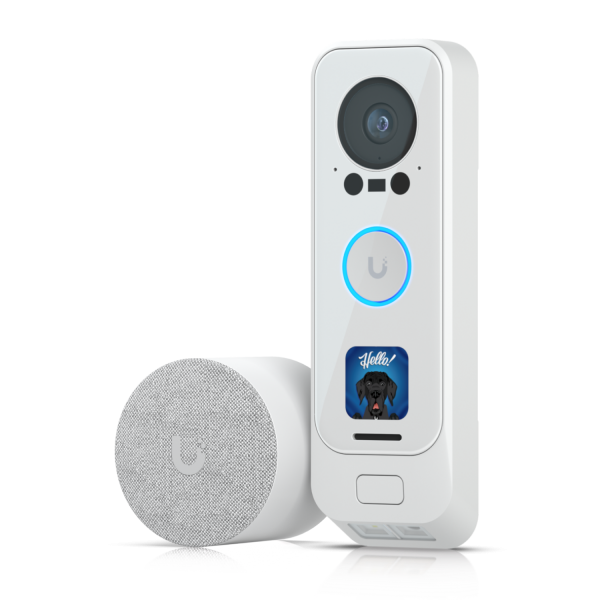

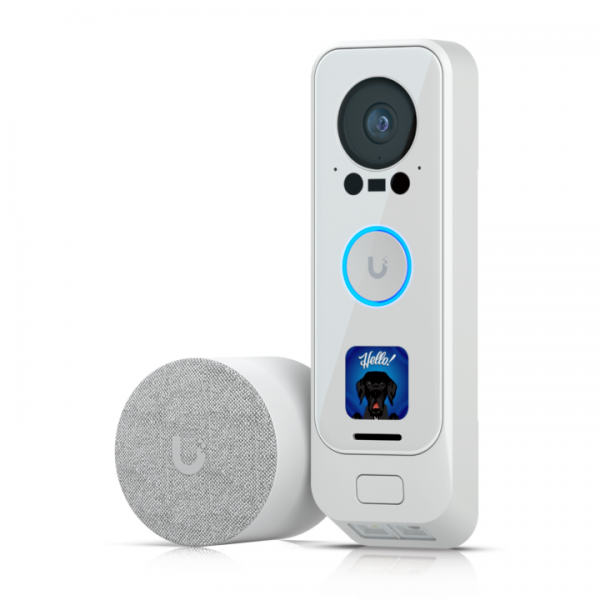

Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Türklingel / Wifi / 8MP Kamera / 2-Way Audio / UVC-G4 Doorbell Pro PoE Kit

Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Türklingel / Wifi / 8MP Kamera / 2-Way Audio / UVC-G4 Doorbell Pro PoE Kit
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

 Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play... more
Product information "Ubiquiti Unifi Protect G4 Doorbell Professional PoE Kit / Türklingel / Wifi / 8MP Kamera / 2-Way Audio / UVC-G4 Doorbell Pro PoE Kit"
 Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation. Colour: white;

Improved HDR and low-light performance

Programmable welcome display and secondary package detection camera

KI event detection

Connection and power supply via PoE

Integrated 2-way audio

Including PoE Chime

Weatherproof (outdoor covered)

Enthält:

UVC-G4 Doorbell Pro (whiteß)

- UP-Chime

Technical specifications

Mechanical
Maße UVC-G4 Doorbell Pro-
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4 inches)
Wall mounting: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7 inches)
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1 inch)
Surface mounting: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1 inch)

UP-Chime PoE-
Device: Ø62 x 54 mm (Ø2.5 x 2.1 inches)
In-wall mounting: Ø89 x 63.1 mm (Ø3.5 x 2.5 inches)
Surface mounting: Ø62 x 20.2 mm (Ø2.5 x 0.8 inch)
Weight UVC-G4 Doorbell Pro-
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
Wall bracket: 53 g (1.9 oz)

UP-Chime PoE-
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
Surface mount: 28 g (1 oz)
Handle material Aluminium alloy, polycarbonate
Mounting material Wall bracket: aluminium alloy
Wedge: polycarbonate
Surface mount: polycarbonate
Chime holder: polycarbonate, zinc alloy
Weather resistance IPX4 (UVC-G4 Türklingel Pro)
Colour Black-
White
Optics
Sensor Main camera: 5MP CMOS
Package camera: 8MP CMOS
Lens Fixed focal length
Viewing angle Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Integrated IR LED illumination and IR cut filter
Video
Resolution Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Maximum frame rate 30 FPS
System
Processor Quad-core chip based on Arm® Cortex®-A53
Network interface UVC-G4 Doorbell Pro: GbE RJ45 connection
UP-Chime PoE: 10/100 MbE connection
Power method PoE
Supported voltage range UVC-G4 Türklingel Pro: 37–57 V DC
UP-Chime PoE: 44–57 V DC
Max. Power consumption UVC-G4 Türklingel Pro: 7 W
UP-Chime PoE: 3.5 W
LED Link/Activity
Buttons (1) Ringtone button
(1) Factory reset
Operating ambient temperature UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
Humidity during operation UVC-G4 Doorbell Pro: 0 to 90 % non-condensing
UP-Chime PoE: 10 to 90 % non-condensing
Certifications CE, FCC, IC
Audio
Microphone Yes (can be deactivated for the doorbell)
Loudspeaker Yes
Summer Yes (UP-Chime PoE)
Software
UniFi OS application UniFi Protect
App UniFi Protect iOS™ and Android™
