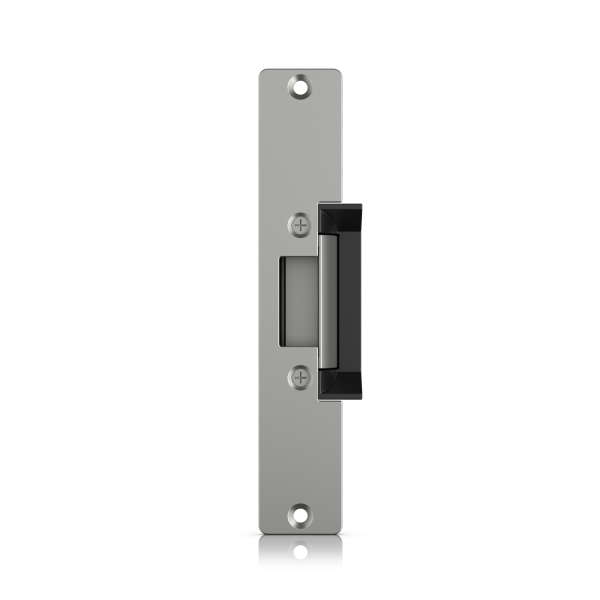

Ubiquiti UniFi Access Lock Electric / UA-Lock-Electric
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 222660
- vendor: Ubiquiti
- mnufacturer no.: UA-Lock-Electric
- EAN No.: 810010076496
- weight: 0.25kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).
Holds up to... more
Product information "Ubiquiti UniFi Access Lock Electric / UA-Lock-Electric"
Fail-secure electric strike lock that connects to a UniFi Access Hub (UA Hub).
Holds up to 1,200 kg (2,645 lb)
Can be installed on an aluminum, steel, or wooden door frame
ANSI-compliant design
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Lock body: 80 x 40 x 35 mm (3.15 x 1.57 x 1.38") Short front plate: 124 x 32 x 3 mm (4.88 x 1.26 x 0.12") Long front plate: 202 x 36 x 3 mm (7.95 x 1.42 x 0.12") |
| Weight | Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure materials | Lock body: zinc alloy Front plate/latches: stainless steel |
| Hardware | |
| Voltage | 12VDC |
| Current power | 400mA ±10% |
| Wiring connection | Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM |
| Lock type | Fail secure lock Single door |
| Lock holding force | 1,200 kg (2,645 lb) |
| Suitability | Wooden Steel Aluminum |
| Screw terminal | + and - |
| Operating temperature | -10 to 45° C (14 to 113° F) |
| Operating humidity | 5 - 90% noncondensing |
| Certifications | FCC, IC, CE |
