Product information "Ubiquiti UniFi Access Starter Kit Gen3 • UA-G3-SK"

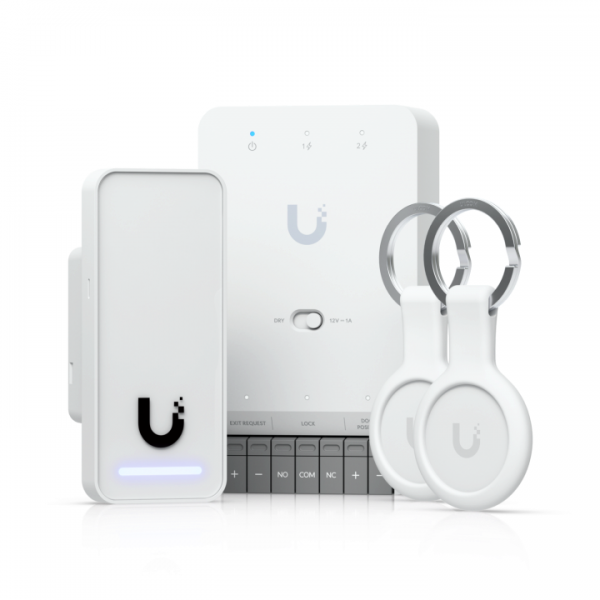

A simple all-in-one kit for UniFi Access designed to manage a single door with one reader. Supports seamless setup and Apple Touch Pass for modern, secure access control.

Highlights:

(1) Door-Hub Mini
(1) G3 Reader
(2) Pocket key fob

Technical data:

UA-Hub-Door-Mini
Mechanical

Dimensions

113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1 inches)

Weight

190 g

Favourite material

Polycarbonate, metal

Hardware

Network interface

(3) GbE RJ45 ports

Power method

PoE++

Max. Power consumption

Without PoE output: 19 W
With PoE output: 50 W

PoE input

50 V direct current, 1 A

PoE output

(2) PoE ports, 31 W in total

Button

(1) Factory reset
(1) Dry/Wet switch

Digital input

Prompt to leave/position sensor

Output relay

Dry: 30 V DC, 1 A
Wet: 12 V DC, 1 A

Recommended max. cable length


	18 AWG UACC cable lock relay length	20 AWG length	22 AWG length	24 AWG length
UA-Lock-Electrical (400mA)	100 m	66 m (217 feet)	42 m (138 feet)	25 m
UA-Lock-Magnetic-270kg (800mA)	46 m (151 feet)	30 m (98 feet)	20 m	12 m (29 feet)
UA-Lock-Magnetic-540kg (500mA)	80 m	51 m	32 m (105 feet)	20 m
Other keys (1A)	36 m (118 feet)	24 m (79 feet)	15 m (49 feet)	9 m (30 feet)

Requirements for PoE cabling

The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site.
The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ⁾ for patch cables; 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables.

Operating environment

Suitable for indoor use only

Operating ambient temperature

-10 to 40 °C (14 to 104 °F)

Humidity during operation

5 to 90 % non-condensing

Software information

The software version of a product can be checked at https://unifi.ui.com üft.

Certifications

CE, FCC, IC

Document number and issue date or revision status

UA-Hub-Tür-Mini, V01

Software

Administrative application

UniFi Access: Version 2.5.2 and higher

LEDs

PoE input

System status

PoE output

Cable status/activity

Input/output relay

Line status/activity

UA-G3
Mechanical

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4 inches)

Weight

82 g (2.9 oz)

Favourite material

Polycarbonate, glass

Mounting material

Aluminium alloy

Mounting

In the wall, junction box

Weather resistance

IP55

Hardware

Network interface

(1) 10/100 MbE RJ45 connection

Connectivity

BLE 4.1
NFC

Power method

PoE
UL 294 Class 2 power-limited power supply
UL 60950-1/62368-1 LPS/PS2 power supply

Supported voltage range

48 V direct current

Max. Power consumption

5 W

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 Ohm, 0.7W

LEDs

(1) Status light

Button

(1) Factory reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0

Operating environment

Außen area

Operating ambient temperature

-30 to 45 °C (-22 to 113 °F)

Humidity during operation

5 to 90 % non-condensing

Software information

The software version of a product can be checked at https://unifi.ui.com üft.

UL 294 level

First attack: Level I
Line safety: Level I
Endurance: Level I
Standby power: Level I

UL 294 declaration

Compliance with IEEE 802.3 specifications has not been verified under UL 294.
The equipment shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Requirements for PoE cabling

CAN/ULC-60839-11-1 quality

Note assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number and issue date or revision status

UA-G3, V01

Software

Administrative application

UniFi Access: Version 3.0.15 and higher

UA-
Pocket mechanism

Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29 inches)

Weight

16 g (0.56 oz)

Favourite material

Polycarbonate, stainless steel, silicone rubber

Weather resistance

IP54

Hardware

NFC frequency

13.56 MHz

NFC technology

ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary security protocol

Operating ambient temperature

-10 to 45 °C (14 to 113 °F)

Humidity during operation

10 to 90 % non-condensing

Certification
