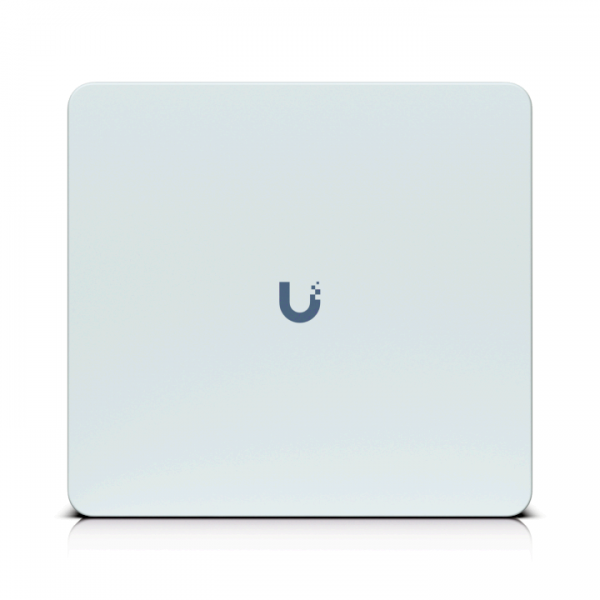

Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8

Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8
Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8
Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8
Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Due to the holiday "1. Weihnachtstag" your order will not be dispatched until the next working day.
Enterprise-grade access hub with entry and exit control to eight doors and battery backup... more
Product information "Ubiquiti UniFi Enterprise Access Hub / Poe / AUX / EAH-8"

Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.

(8) Lock terminals (12V or Dry)

(8+8) Inputs for request-to-exit devices and door position sensors

(8) PoE ports for Access Readers

(4) AUX terminals for chimes, sirens, or door openers

(1) Battery backup input (32–48V)

Technical Specifications

Mechanical
Dimensions 379 x 355 x 105 mm (15 x 14 x 4.1")
Weight Device: 9.1 kg (20 lb)
Mount: 624 g (1.4 lb)
Enclosure material SGCC housing with PC cover
Mounting material SGCC wall mount plate
Hardware
Networking interface (10) 10/100/1000 Base-T
Power method Universal input, 100-240V AC,~4.4A Max, 50/60Hz
32–48V DC Lead Acid Battery
Power supply AC/DC, internal
Max. power consumption 240W
PoE interface (8) PoE (Pins 1, 2+; 3, 6-)
Voltage range PoE mode 44–57V DC
Total available PoE 60W
Max. PoE wattage per port 15.4W
Button (1) Factory-reset
LEDs System: white/blue
Output relays: steady white
Ethernet: flashing white
Digital input (8) Inputs for request-to-exit devices
(8) Inputs for door position sensors
(1) Emergency
Dry output relay (8) Lock terminals (12V or Dry)
(4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered output relay Lock: 12V DC, 1A/ Dry
Aux: Dry only
Recommend max. cable length
  18 AWG
UACC-Cable-DoorLockRelay length
20
AWG length
22
AWG length
24
AWG length
UA-Lock-Electric
(400mA)
100 m
(328 ft)
66 m
(217 ft)
42 m
(138 ft)
25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)
46 m
(151 ft)
30 m
(98 ft)
20 m
(66 ft)
12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)
80 m
(262 ft)
51 m
(167 ft)
32 m
(105 ft)
20 m
(66 ft)
Other locks
(1A)
36 m
(118 ft)
24 m
(79 ft)
15 m
(49 ft)
9 m
(30 ft)
Operating environment Indoor use only
Operating temperature 0 to 40° C (32 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
