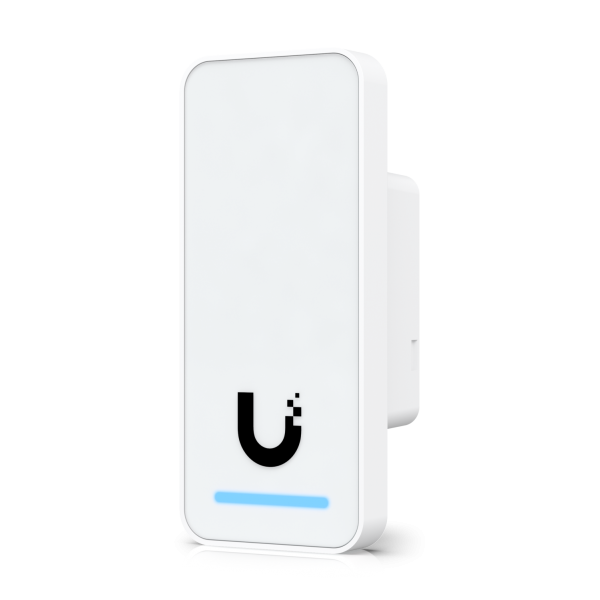

Ubiquiti UniFi Access Reader Gen2 / POE / UA-G2
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 217910
- vendor: Ubiquiti
- mnufacturer no.: UA-G2
- EAN No.: 810084691663
- weight: 0.082kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave... more
Product information "Ubiquiti UniFi Access Reader Gen2 / POE / UA-G2"
Compact, second-generation NFC card reader and request-to-exit device that supports hand-wave door unlocking.
Unlock using an NFC card or UniFi Identity mobile app
Additional handwave unlock functionality
Entry and exit greeting messages
Connects to UniFi Access Hub using PoE
IP55 weather resistance (-30 to 45° C)
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
| Weight | 82 g (2.9 oz) |
| Enclosure material | Polycarbonate, glass |
| Mounting | In wall, gang box |
| Weatherproofing | IP55 |
| Hardware | |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 5W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | (1) 8 ohm, 0.7W |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
| Operating temperature | -30 to 45° C (-22 to 113° F) |
| Operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 1.5.9 and later |
