Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE

Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE

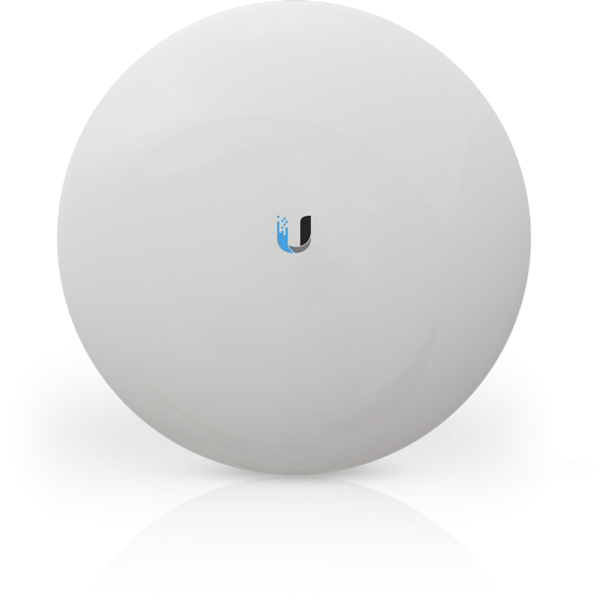

Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE Preview: Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

Call us Mail us
Description Accessories 6
Description
Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio... more
Close menu
Product information "Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE"

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.

5 GHz, 10+ km link range

450+ Mbps throughput

Easy mounting

Dedicated spectral analysis radio

Dedicated WiFi management radio

Technical Specifications

Mechanical
Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wall mount (Not included)
Wind Loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Networking interface (2) GbE RJ45 ports
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
ESD/EMP protection Air/contact: ± 24kV
LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 19 dBi
Channel sizes
PtP Mode
PtPM Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
