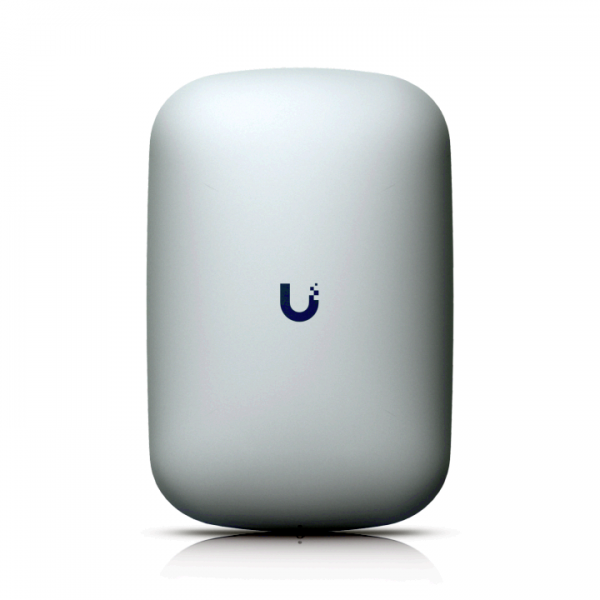

Ubiquiti Unifi Access Point Extender, U6-Extender
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 213047
- vendor: Ubiquiti
- mnufacturer no.: U6-Extender
- EAN No.: 810010074348
- weight: 0.34kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Easy-to-deploy WiFi 6 coverage extender with a 5.3+ Gbps aggregate throughput rate.
115 m²... more
Product information "Ubiquiti Unifi Access Point Extender, U6-Extender"
Easy-to-deploy WiFi 6 coverage extender with a 5.3+ Gbps aggregate throughput rate.
115 m² (1,250 ft²) coverage
300+ connected devices
WiFi6 (4x4 MIMO)
Powered with standard AC wall outlet*
*EU power plug only.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | US: 169.7 x 112.2 x 32.2 mm (6.68 x 4.42 x 1.27") EU: 169.7 x 112.2 x 77.6 mm (6.68 x 4.42 x 3.05") |
| Weight | US: 290 g (10.2 oz) EU: 340 g (12 oz) |
| Enclosure material | Plastic |
| Hardware | |
| Management interface | Bluetooth |
| Power method | Universal AC input, 100—240V AC, 0.3A max., 50/60 Hz |
| Supported voltage range | 110—240V AC |
| Max. power consumption | 11W |
| Max. TX power 2.4 GHz 5 GHz |
22 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz |
2 x 2 (UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate 2.4 GHz 5 GHz |
573.5 Mbps 4.8 Gbps |
| Antenna gain 2.4 GHz 5 GHz |
5 dBi 6 dBi |
| LED | White/blue |
| Button | Factory reset |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Zero-wait DFS | Yes* *Supported with upcoming firmware versions. |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.5.55 and later |
