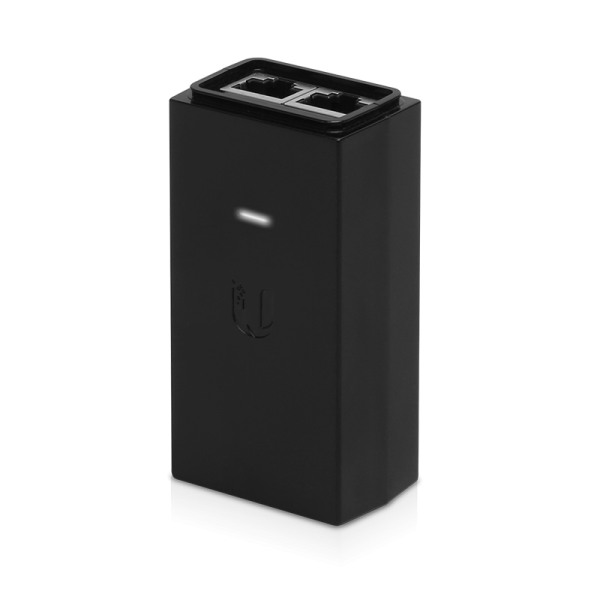

Ubiquiti POE Injector, 24VDC, 12W, Gigabit Port

product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 118551
- vendor: Ubiquiti
- mnufacturer no.: POE-24-12W-G EU
- EAN No.: 810354023002
- weight: 0.256kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads


Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE... more
Product information "Ubiquiti POE Injector, 24VDC, 12W, Gigabit Port"
Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Technical Specifications
POE-24-7W-G-WH (Low-Power) | |
---|---|
Dimensions | 72 x 45 x 33 mm (2.84 x 1.75 x 1.33") |
Weight | 72.1g (2.54 oz) |
Output Voltage | 24VDC @ 0.3A |
LAN Activity Indicator | No |
Gigabit LAN Port | Yes |
Remote Reset Capability | Yes |
Reset Button | Yes |
Rated Voltage | 100-240VAC @ 50/60Hz |
Input Current | 0.3A @ 120VAC, 0.2A @240VAC |
Inrush Current | <40A Peak @ 120VAC, <70A Peak @ 230VAC |
Efficiency | 80+% |
Output Ripple | 1% Max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
4-Pair Powering | – |
Operating Temperature | 0 to 40°C (32 to 104°F) |
Storage Temperature | -30 to 70°C (-22 to 158°F) |
Operating Humidity | 35 to 95% Non-Condensing |
AC Connector | IEC-320 C6 |
Data IN / PoE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max. Surge Discharge | 1500A (8/20 μs) Power |
Peak Pulse Current | 36A (10/1000 μs) Data |
Shunt Capacitance | <5 pf data |
Response Time | <1 ns |
Certifications | CE, FCC, IC, UL |
POE-24-12W-G (Mid-Power) | |
Dimensions | 87 x 44 x 29 mm (3.43 x 1.73 x 1.14") |
Weight | 99.4 g (3.51 oz) |
Output Voltage | 24VDC @ 0.5A |
LAN Activity Indicator | No |
Gigabit LAN Port | Yes |
Remote Reset Capability | Yes |
Reset Button | Yes |
Rated Voltage | 100-240VAC @ 50/60Hz |
Input Current | 0.3A @ 120VAC, 0.2A @ 240VAC |
Inrush Current | <30A Peak @ 120VAC, <60A Peak @ 230VAC |
Efficiency | 75+% |
Output Ripple | 1% Max. |
Switching Frequency | 50 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
4-Pair Powering | - |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Storage Temperature | -30 to 70°C (-22 to 158° F) |
Operating Humidity | 35 to 95% Noncondensing |
AC Connector | IEC-320 C6 |
Data IN / PoE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max. Surge Discharge | 1500A (8/20 μs) Power |
Peak Pulse Current | 36A (10/1000 μs) Data |
Shunt Capacitance | <5 pF data |
Response Time | <1 ns |
Certifications | CE, FCC, IC, UL |
POE-24-24W-G (Hi-Power) | |
Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30") |
Weight | 158.5 g (5.59 oz) |
Output Voltage | 24VDC @ 1.0A |
LAN Activity Indicator | No |
Gigabit LAN Port | Yes |
Remote Reset Capability | Yes |
Reset Button | Yes |
Rated Voltage | 100-240VAC @ 50/60Hz |
Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
Efficiency | 80+% |
Output Ripple | 1% Max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 3% |
Load Regulation | ≤ 5% |
2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
4-Pair Powering | - |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Storage Temperature | -30 to 70°C (-22 to 158° F) |
Operating Humidity | 35 to 95% Noncondensing |
AC Connector | IEC-320 C6 |
Data IN / PoE | RJ45 Shielded Socket |
Surge Protection | Difference and Common Mode |
Clamping Protection | 11V Data, 60V Power |
Max. Surge Discharge | 1500A (8/20 μs) Power |
Peak Pulse Current | 36A (10/1000 μs) Data |
Shunt Capacitance | <5 pF data |
Response Time | <1 ns |
Certifications | CE, FCC, IC, UL |
