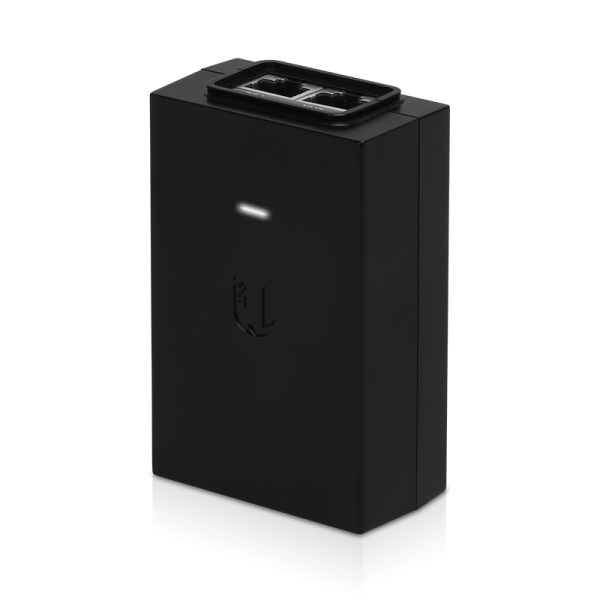

Ubiquiti POE Injector, 48VDC, 24W
product pictures similar, may differ from the product description!
Due to the holiday "1. Weihnachtstag" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 111090
- vendor: Ubiquiti
- mnufacturer no.: POE-48-24W
- EAN No.: 810354023064
- weight: 0.308kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Ubiquiti 48 V DC PoE Adapters providing a variety of features to help protect your PoE... more
Product information "Ubiquiti POE Injector, 48VDC, 24W"
Ubiquiti 48 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Technical Specifications
| POE-48-24W-G | |
|---|---|
| Dimensions | 92 x 60 x 33 mm (3.62 x 2.36 x 1.30") |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 48VDC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <65A Peak @ 120VAC, <130A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
