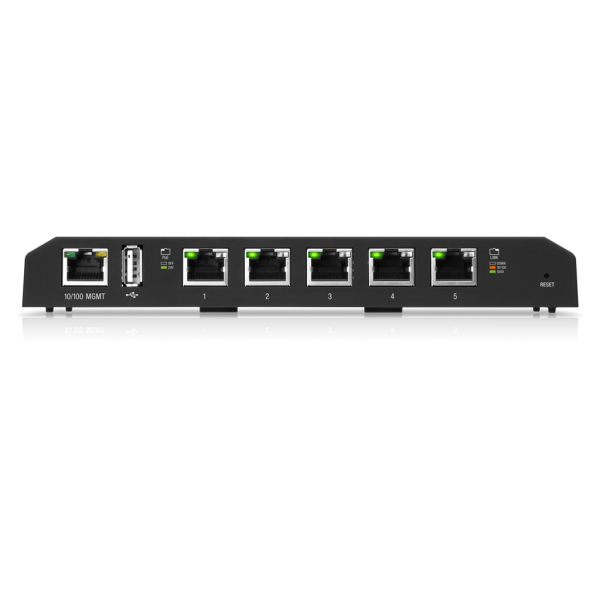

Ubiquiti EdgeSwitch 5 / Pro / 5 Gigabit RJ45 Ports / 24V Passive POE / ES-5XP
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 161537
- vendor: Ubiquiti
- mnufacturer no.: ES-5XP
- EAN No.: 817882024563
- weight: 0.25kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact but powerful switch with (5) Gigabit PoE ports and an intuitive EdgeSwitch XP... more
Product information "Ubiquiti EdgeSwitch 5 / Pro / 5 Gigabit RJ45 Ports / 24V Passive POE / ES-5XP"
Compact but powerful switch with (5) Gigabit PoE ports and an intuitive EdgeSwitch XP interface.
(5) GbE RJ45 ports
24V passive PoE passthrough
Wall-mountable
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 197 x 87.5 x 27.3 mm (7.76 x 7.28 x 1.61") |
| Weight | 250 g (8.82 oz) |
| Hardware | |
| Management Interface | (1) 10/100 Ethernet Port |
| Networking Interface | (5) 10/100/1000 Ethernet Ports |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60W |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5W |
| ESD Rating | ±24 kV Air/Contact |
| PoE Method | Passive |
| Button | Reset |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| PoE Configurable Per Port Management Port Data Ports |
N/A Off/24V |
| LEDs Per Port Management Port Data Ports |
Power/Link PoE, Speed/Link/Activity |
| Networking Interfaces Management Port Data Ports |
(1) 10/100 Ethernet Port (5) 10/100/1000 Ethernet Ports |
| Operating Humidity | 90% Noncondensing |
| Operating Temperature | -25 to 55° C(-13 to 131° F) |
| Certifications | CE, FCC, IC |
