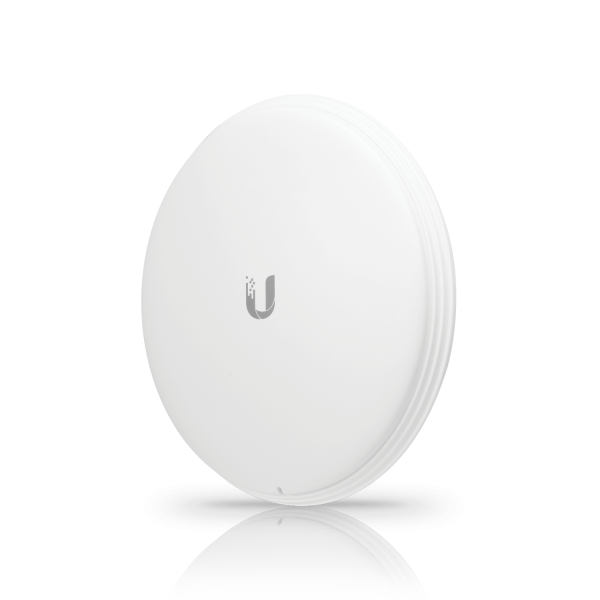

Ubiquiti airMAX PrismStation Horn
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 189997
- vendor: Ubiquiti
- mnufacturer no.: Horn-5-30
- EAN No.: 817882020060
- weight: 0.002kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging... more
Product information "Ubiquiti airMAX PrismStation Horn"
5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30° to 90°.
Improved beam shaping
Enhanced co-location performance
Single button release for ease of changing antennas
Compatible with airFiber, LTU and airMAX radios
Technical Specifications
| Horn-5-30 | |
|---|---|
| Dimensions | Ø 221.4 x 184.2 mm (8.71 x 7.3") |
| Weight | 1.1 kg (2.4 lb) |
| Supported Frequency Range | 5.15 - 5.85 GHz |
| Gain | 19 dBi |
| HPOL Beamwidth | 30° |
| VPOL Beamwidth | 30° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-45 | |
|---|---|
| Dimensions | Ø 175 x 96 mm (6.9 x 3.78") |
| Weight | 1.34 kg (3 lb) |
| Supported Frequency Range | 5.15 -5.85 GHz |
| Gain | 15.5 dBi |
| HPOL Beamwidth | 45° |
| VPOL Beamwidth | 45° |
| Elevation Beamwidth | 45° |
| Maximum VSWR | 1.7:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 56 N @ 200 km/h (12.6 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-60 | |
|---|---|
| Dimensions | 161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73") |
| Weight | 720g (1.6 lb) |
| Supported Frequency Range | 5.15 -5.85 GHz |
| Gain | 16 dBi |
| HPOL Beamwidth | 60° |
| VPOL Beamwidth | 60° |
| Elevation Beamwidth | 30° |
| Maximum VSWR | 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 50 N @ 200 km/h (11.2 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
| Horn-5-90 | |
|---|---|
| Dimensions | 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46") |
| Weight | 920 g (2 lb) |
| Supported Frequency Range | 5.15 -5.85 GHz |
| Gain | 13 dBi |
| HPOL Beamwidth | 90° |
| VPOL Beamwidth | 90° |
| Elevation Beamwidth | 45° |
| Maximum VSWR | 2:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 46 N @ 200 km/h (10.3 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 17 dB |
