Ubiquiti airFiber PtP bridge • 60 GHz • 6 Gbps • 1x GbE • 1 x SFP+ • 2 km • AF60-HD

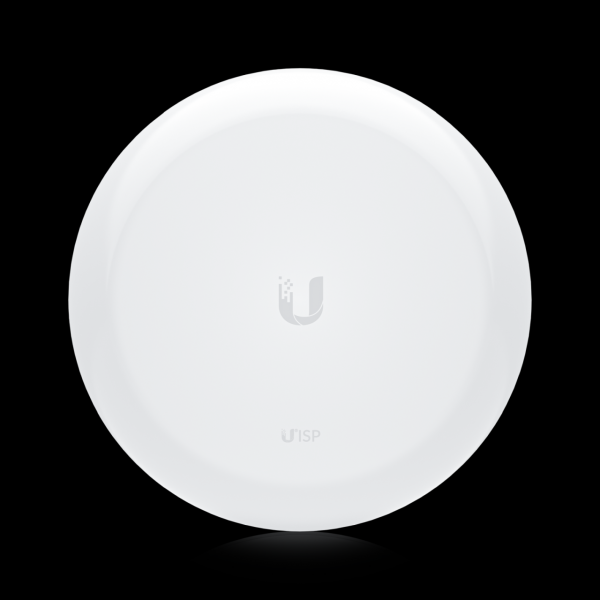

Preview: Ubiquiti airFiber PtP bridge • 60 GHz • 6 Gbps • 1x GbE • 1 x SFP+ • 2 km • AF60-HD

product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 210518
vendor: Ubiquiti
mnufacturer no.: AF60-HD
EAN No.: 8100100761138
weight: 3kg
warranty: 12 months
Do you have any questions concerning this product?

Multi-gigabit 60 GHz bridge with SFP+ support and a connection range of 2 km. Highlights:... more

Close menu

Product information "Ubiquiti airFiber PtP bridge • 60 GHz • 6 Gbps • 1x GbE • 1 x SFP+ • 2 km • AF60-HD"

Multi-gigabit 60 GHz bridge with SFP+ support and a connection range of 2 km.

Highlights:

2 km connection range
6 Gbit/s max. throughput
(1) GbE and (1) 10G SFP+ port
Precision alignment bracket
Integrated GPS

_{Note . This product should be purchased in pairs to form connections.}

Technical data:

Mechanical
Maße	Ø189 x 89 mm (Ø7.4 x 3.5")
Weight	Without bracket: 1.8 kg (3.9 lb) With bracket: 2.95 kg (6.5 lb)
Handle materials	Aluminium alloy, UV-stabilised plastic
Mounting material	Stainless steel (SUS304)
Mounting	60G precision alignment rod holder (included in the scope of delivery)
Wind load	64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproof	IPX6
Hardware
Processor	Quad-core ARM® Cortex® A72 with 1.6 GHz
Memory	2 GB DDR4
Network interface	(1) GbE RJ45 port (1) 1/10G SFP+ port
Max. power consumption	29.31W
Power method	Passive PoE 4-pair (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pair (4, 5+; 7, 8-), only for 44–54 V DC
Power supply	48 V DC, 0.65 A Gigabit PoE adapter (included in the scope of delivery)
Supported voltage range	44–54 V direct current 22–27 V direct current
GPS	Yes
HF connections	Internal
Button	Factory settings reset
Operating temperature	-40 to 55 °C (-40 to 131 °F)
Operating humidity	5 to 95 % non-condensing
Certifications	FCC, IC, CE, Terragraph
Software
Operating mode	PtP only
Services	UISP, ping watchdog, web server, SSH server, NTP client, system log, device detection
Utilities	Beamform info, discovery utility, ping, trace route, speed test
Network	Bridge mode
Wireless settings	GPS synchronisation
Management interface	Bluetooth management for easy setup via the WEB user interface of the UISP app
Minimum requirements for the software	Any modern web browser/iOS™ or Android™-based smartphone
System
Max. throughput 60 GHz	3.8 Gbit/s/6 Gbit/s (with channel bundling enabled)
Max. range	2 km
Encryption	WPA2-PSK (AES)
Uplink/downlink ratio	50/50
RF
Working frequency*	57–66 GHz * Depending on the regulatory region
Channel bandwidth	2160 MHz/4320 MHz (with channel bundling activated)
Operating channels	58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz* *Depending on the channel bandwidth.
Polarisation	Vertical linear
Beam width	Azimuth: 3 dB 3° Elevation: 3 dB 3°
Electrical downward tilt	0°
LEDs
Performance	Flashes white: Boot process is running. White: not connected to the UISP™console. Blue: connected to the UISP console
Ethernet	Blinking blue: Ethernet activity
GPS	Blue: Reception of at least (4) GPS satellite signals
60G	Blue: active connection
