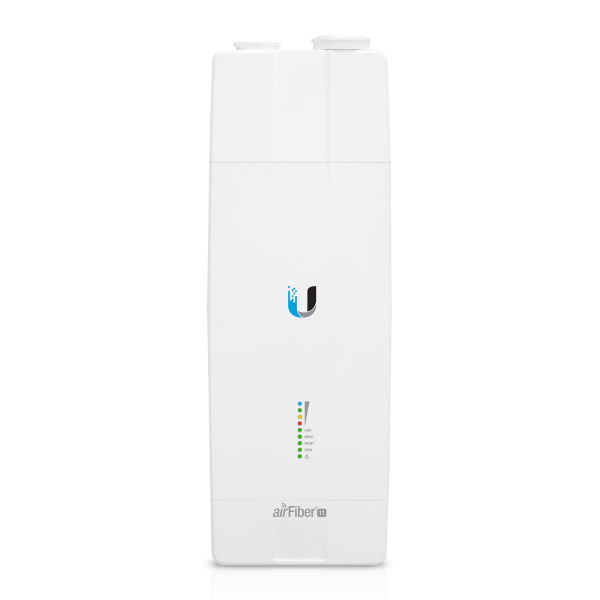

Ubiquiti AirFiber, 11GHz AF-11-EU
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 183590
- vendor: Ubiquiti
- mnufacturer no.: AF-11
- EAN No.: 810010071620
- weight: 3.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact, point-to-point radio system that operates at 11 GHz frequency.
11 GHz, 300+ km... more
Product information "Ubiquiti AirFiber, 11GHz AF-11-EU"
Compact, point-to-point radio system that operates at 11 GHz frequency.
11 GHz, 300+ km link range
1.2+ Gbps throughput
Distinct RX and TX frequencies
1+ Mpps processing
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
| Weight | 2.26 kg (5 lb) |
| Mounting | AF-11G35 mount compatible |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) DC Power Block |
| Power supply | 50V DC, 1.2A PoE Gigabit Adapter (Included) |
| Supported voltage range | 38-56V DC |
| RF connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | SISO/MIMO |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range | 300+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency* | 10.7-11.7 GHz *Depends on regional regulations. |
| Max. conducted TX power* | 30 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 1 ppm |
| Channel bandwidth* | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles * For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber |
