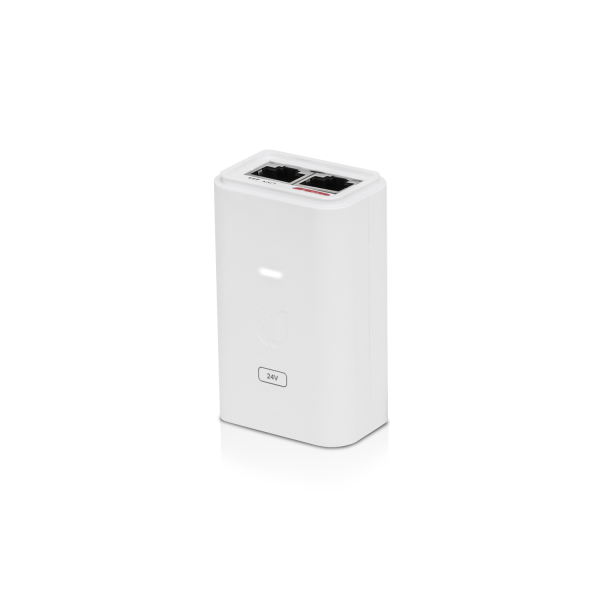

Ubiquiti POE Injector , 24V , 7W , Gigabit , Weiß

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 192178
vendor: Ubiquiti
mnufacturer no.: POE-24-7W-G-WH
EAN No.: 817882025140
weight: 0.3kg
warranty: 12 months
Do you have any questions concerning this product?

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE... more

Close menu

Product information "Ubiquiti POE Injector , 24V , 7W , Gigabit , Weiß"

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.

Surge and clamping protection

Maximum surge discharge

Peak pulse current

AC cable with earth ground

Technical Specifications

POE-24-7W-G-WH (Low-Power)
Dimensions	72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight	72.1g (2.54 oz)
Output Voltage	24VDC @ 0.3A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @240VAC
Inrush Current	<40A Peak @ 120VAC, <70A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	–
Operating Temperature	0 to 40°C (32 to 104°F)
Storage Temperature	-30 to 70°C (-22 to 158°F)
Operating Humidity	35 to 95% Non-Condensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pf data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
POE-24-12W-G (Mid-Power)
Dimensions	87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight	99.4 g (3.51 oz)
Output Voltage	24VDC @ 0.5A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current	<30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency	75+%
Output Ripple	1% Max.
Switching Frequency	50 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	-
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
POE-24-24W-G (Hi-Power)
Dimensions	88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight	158.5 g (5.59 oz)
Output Voltage	24VDC @ 1.0A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	Yes
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current	<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency	80+%
Output Ripple	1% Max.
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	-
Operating Temperature	0 to 40° C (32 to 104° F)
Storage Temperature	-30 to 70°C (-22 to 158° F)
Operating Humidity	35 to 95% Noncondensing
AC Connector	IEC-320 C6
Data IN / PoE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Certifications	CE, FCC, IC, UL
