Ubiquiti AmpliFi Mesh WiFi System / WiFi 5 / 4 GbE LAN / 4 GbE WAN / 2 AmpliFi MeshPoints / AFi-HD
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 221801
- vendor: Ubiquiti
- mnufacturer no.: AFi-HD
- EAN No.: 810354025563
- weight: 2.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Includes a router base station and two wireless super mesh points for maximum WiFi coverage... more
Product information "Ubiquiti AmpliFi Mesh WiFi System / WiFi 5 / 4 GbE LAN / 4 GbE WAN / 2 AmpliFi MeshPoints / AFi-HD"

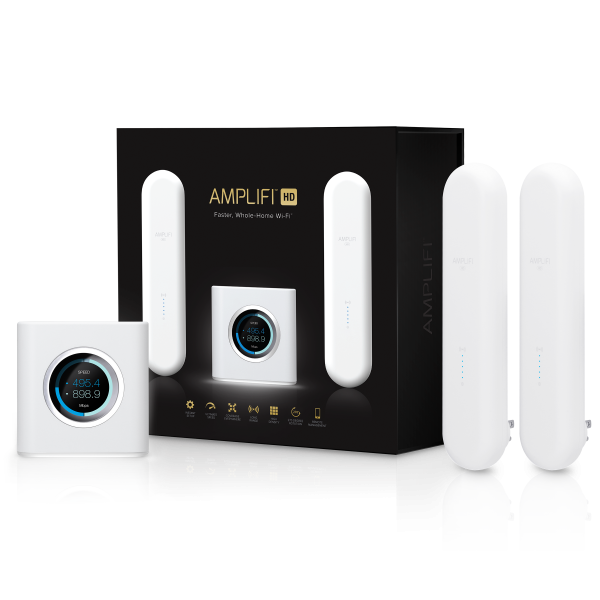

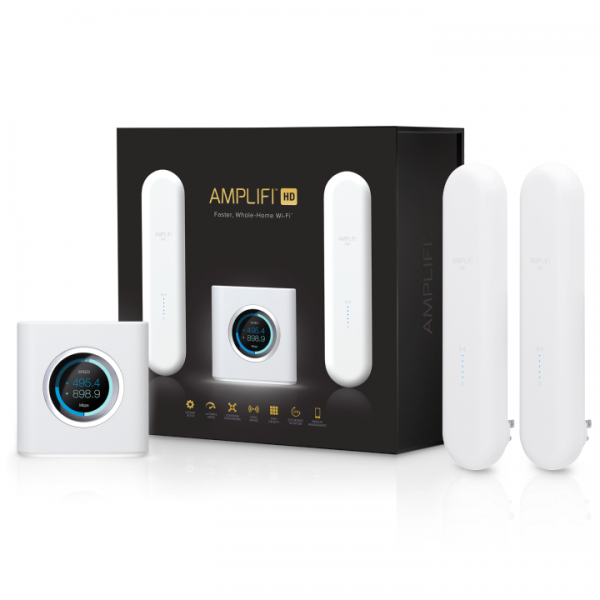

Includes a router base station and two wireless super mesh points for maximum WiFi coverage throughout your home.
6,000 ft² coverage
150+ connected devices
WiFi5 (3x3 MIMO)
(2) AmpliFi MeshPoints
Router with (4) GbE LAN and (4) GbE WAN port
Router with 1.6" LCM touchscreen
Technical Specifications
| MeshPoint Mechanical |
|
|---|---|
| Dimensions | 99.5 x 97.8 x 33.1 mm (3.9 x 3.9 x 1.3") |
| Weight | 215 g (7.6 oz) |
| Hardware | |
| Networking Interface | WiFi (1) GbE RJ45 LAN |
| Max. Power Consumption | 9W |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Max. TX Power | 22 dBm |
| Speeds 2.4 GHz 5 GHz |
300 Mbps 867 Mbps |
| MIMO 2.4 GHz 5 GHz |
2x2 2x2 |
| Antennas | (1) Dual-Band Antenna, Single-Polarity |
| Buttons | Reset |
| Operating Temperature | -10 to 55° C (14 to 131° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, CE, IC |
| Software | |
| WiFi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Supported Data Rates (Mbps) - for both devices | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80) |
| Instant Router Mechanical |
|
| Dimensions | 99.5 x 97.8 x 33.05 mm (3.9 x 3.9 x 1.3") |
| Weight | 215 g (7.6 oz) |
| Hardware | |
| Networking Interface | WiFi (1) GbE RJ45 WAN (1) GbE RJ45 LAN |
| Max. Power Consumption | 9W |
| ESD/EMP Protection | ± 24kV Air/Contact |
| Max. TX Power | 22 dBm |
| Speeds 2.4 GHz 5GHz |
300 Mbps 867 Mbps |
| Antennas | (1) Dual-Band Antenna, Single-Polarity |
| Display | 30.73 mm (1.21") Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale |
| Buttons | Reset |
| Operating Temperature | -10 to 55° C (14 to 131° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | FCC, CE, IC |
| Software | |
| WiFi Standards | 802.11ac |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 13 Mbps to 866.7 Mbps (MCS0 - MCS9, VHT 20/40/80) |
