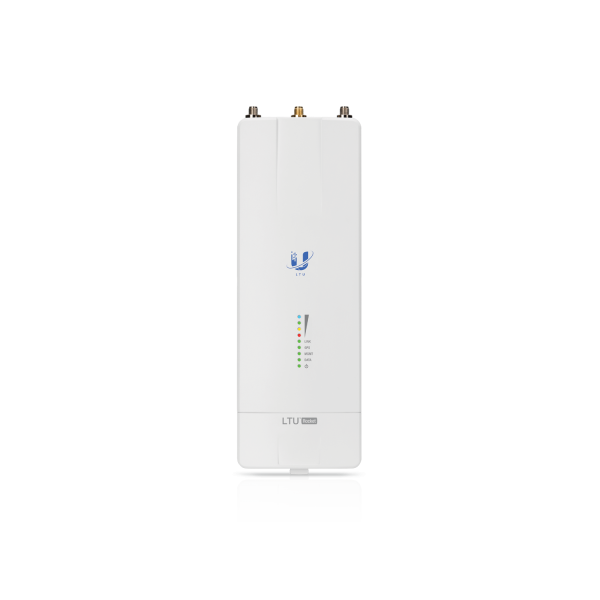

Ubiquiti LTU-Rocket-EU P2MP 5GHz Ltu Base Radio
- stock: 0
- part no.: 183228
- vendor: Ubiquiti
- mnufacturer no.: LTU-Rocket
- EAN No.: 817882029438
- weight: 1.204kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE EU RoHS und REACH Erklärung
5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite,... more
Product information "Ubiquiti LTU-Rocket-EU P2MP 5GHz Ltu Base Radio"
5 GHz PtMP LTU BaseStation Radio, functions in a PtMP environment using the LTU Pro, LTU Lite, or LTU LR as Clients.
Integrated 5 GHz advanced filtering performance
900+ Mbps throughput*
100+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Note. Compatible with LTU devices only.
*FW version 2.3.0 and later.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 224 x 82 x 48mm (8.82 x 3.23 x 1.89") |
Weight | 468 g (1.03 lb) |
Enclosure materials | Diecast aluminum, polycarbonate |
Mount materials | Metal, polycarbonate |
Mounting | Integrated pole mount (Kit included) GPS pole mount (Kit included) Rocket mount compatible |
Weatherproofing | IP67 |
Hardware | |
Networking interface | (2) GbE RJ45 ports |
Power method | Dual passive PoE |
Power supply | 24V, 1A PoE Gigabit adapter (Included) |
Supported voltage range | 18—54V DC |
Max. power consumption | 25W |
RF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
GPS | Yes |
GPS antenna | External magnetic base |
Button | Factory reset |
Operating temperature | -40° to 55° C (-40° to 131° F) |
Certifications | FCC |
Software | |
Mode | PtMP BaseStation radio |
Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
Auto distance adjustment | Yes |
Auto power adjustment | Yes |
Security | Yes |
Statical reporting | Yes |
Management interface | Bluetooth management for easy setup over UISP App WEB UI |
Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
System | |
Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
Packets per second | 2+ million |
Supported clients count | 100+ |
Maximum range | 100+ km* * Throughput and range values may vary depending on the environmental conditions. |
Encryption | WPA2-PSK (AES) |
Uplink/Downlink ratio | 25/75, 33/67, 50/50 |
RF | |
Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depends on regulatory region. |
Max. conducted TX power | 29 dBm |
Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* selectable Programmable uplink and downlink duty cycles *FW version 2.3.0 and later. |
Management radio | 2400 - 2483.5 MHz |
