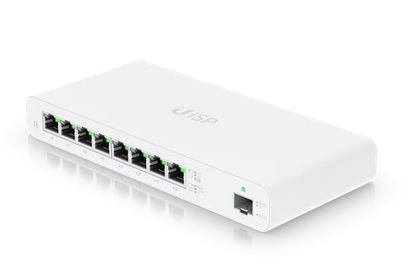

Ubiquiti UISP-R 8x Gigabit PoE ISP Router, 1x SFP
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 211960
- vendor: Ubiquiti
- mnufacturer no.: UISP-R
- EAN No.: 810010076588
- weight: 1kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure,... more
Product information "Ubiquiti UISP-R 8x Gigabit PoE ISP Router, 1x SFP"
Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure, large-scale networks.
(8) GbE RJ45 ports with 27V passive PoE output
(1) SFP port
110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
Up to 1 Gbps NAT throughput**
Traffic shaping functionality and automated customer suspension
Firewall and OSPF routing
*When powered with the included AC/DC adapter.
**Up to 500 Mbps with Netflow enabled; up to 400 Mbps with Traffic Shaping enabled.
Can be staged outdoors when enclosed in the UISP Box (sold separately).
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 600 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core 880 MHz, MIPS1004Kc |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 512 MB NAND |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-Band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 10W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. Passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data port | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
