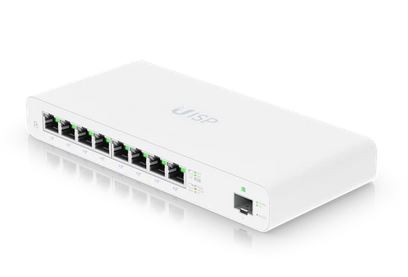

Ubiquiti UISP-S 8x Gigabit PoE ISP Router, 1x SFP
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 211962
- vendor: Ubiquiti
- mnufacturer no.: UISP-S
- EAN No.: 810010076595
- weight: 1kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building... more
Product information "Ubiquiti UISP-S 8x Gigabit PoE ISP Router, 1x SFP"
Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building secure, high-performance networks.
(8) GbE RJ45 ports with 27V passive PoE output
(1) SFP port
110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
Standalone management through local web interface** and UISP Application integration
*When powered with the included AC/DC adapter.
**Available for switches updated to version 1.6.0 and later.
Can be staged outdoors when enclosed in the UISP Box (sold separately).
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 610 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.392 Mpps |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 8W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total available PoE | 110W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data ports | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
