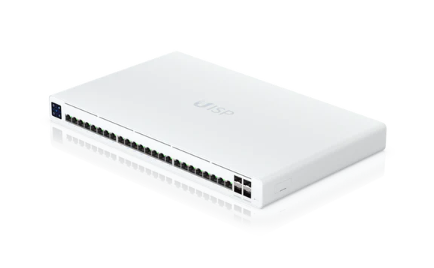

Ubiquiti UISP Switch Pro, A 24-port, Layer 2 PoE switch designed for ISP networks.
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 217189
- vendor: Ubiquiti
- mnufacturer no.: UISP-S-Pro
- EAN No.: 810010074386
- weight: 4kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4)... more
Product information "Ubiquiti UISP Switch Pro, A 24-port, Layer 2 PoE switch designed for ISP networks."
220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports.
(24) GbE RJ45 ports, including (16) with 27V passive PoE output
(4) SFP+ ports
220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
1.3" LCM color touchscreen
Additional Power TransPort input for DC redundancy
Standalone management through local web interface* and UISP Application integration
*Available for switches updated to version 1.6.0 and later.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight | 4 kg (8.8 lb) |
| Enclosure materials | SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
| Hardware | |
| Networking interface | (24) GbE RJ45 LAN ports (4) 1/10G SFP+ ports |
| Management interface | Ethernet In-band Bluetooth |
| Total non-blocking throughput | 64 Gbps |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| Power method | (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz (1) Power TransPort DC input 27V DC, 9.3A |
| Power supply | AC/DC, Internal, 250W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| LCM display | (1) 1.3" touchscreen |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16 |
| Total available PoE | 220W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| RJ45 data ports | PoE Speed/link/activity |
| SFP+ data ports | Speed/link/activity |
| Software | |
| Management application | UISP: Version 1.5.7 and later |
