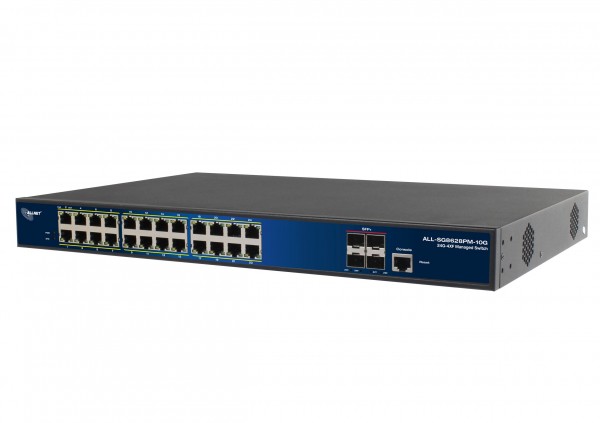

ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G

ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G
ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G
ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G
ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ •... more
Product information "ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G"

ALLNET Switch full managed Layer2+ 24 Port • 24x GbE • PoE Budget 370W • 24x PoE at • 4x SFP+ • 19" • JSON API • ALL-SG8628PMJ-10G

Highlights:

  • 24 port Gigabit Layer2+ switch architecture (ports 1~24)
  • 4 ports SFP+ 10G slots for optional GBICSs compatible (ports 25~28)
  • Supports various PoE management functions, including PoE shedule, PoE PD-Alive, etc.
  • Supports SFP DDM & cable diagnostics
  • Supports G.8032 ERPS, self-detection time < 20 ms
  • Supports 1588 V2.0, transparent clock
  • Supports port aggregation
  • 4KV &overvoltage protection, 6KV contact/8KV air ESD protection
  • max. 370W PoE budget
  • 19"inch bracket or wall/table mounting possible

ALL-SG8628PMJ-10G is an L2+ managed switch with 24 Gigabit Ethernet ports and 4 1G/10G dual speed SFP ports. The 24 Ethernet ports support IEEE802.3.af/at PoE output, can work with PoE PD devices such as IP cameras, wireless AP, doorbell, etc. With the advanced L2+ management function, it is easy to set up to meet the technical requirements of the project. It is an ideal solution for CCTV surveillance, wireless coverage and other SMB applications.

Extensive PoE management function

As a managed PoE switch for CCTV surveillance, wireless and VoIP networks, the ALL-SG8628PMJ-10G has the following special PoE management functions:

  • PoE PD alive check
  • Timed rebooting of the power supply
  • PoE schedule
  • Monitoring of PoE utilisation
  • Soft reboot PoE non-stop
  • Prioritisation of the PoE port feed-in

10Gbps uplink capacity for high bandwidth applications
10G Ethernet is a major leap forward in the development of Ethernet. The 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, which means that the administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or speed to efficiently expand the network. This is a cost-effective solution for SME networks to achieve the maximum performance of 10G networks.

Solution for IPv6 networks
With the IPv6/IPv4 dual stack and other management features, the ALL-SG8628PMJ-10G is the best choice for IP CCTV, VoIP and wireless solution providers to develop IPv6 networks. At the same time, they help SMEs to migrate their network infrastructures to the IPv6 era without additional investment.

Robust Layer 2 functions
The ALL-SG8628PMJ-10G can be programmed for advanced switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS, IGMP/MLD snooping, etc. The ALL-SG8628PMJ-10G enables the operation of a high-speed trunk that combines multiple ports.

Powerful security features
The ALL-SG8628PMJ-10G provides a comprehensive access control list (ACL) to enforce security at the network edge. It can be used to restrict network access by denying packets based on source and destination IP addresses, TCP/UDP port numbers or defined typical network applications. The protection mechanism also includes 802.1x port-based and MAC-based user and device authentication. The private VLAN function can be used to prevent communication between edge ports in order to protect user privacy.

Improved security and traffic control
The ALL-SG8628PMJ-10G supports the DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to protect IP snooping from attacks and to discard ARP packets with invalid MAC addresses. The network administrator can now set up highly secure company networks with significantly less time and effort than before.

User-friendly, secure management
For efficient management, the ALL-SG8628PMJ-10G managed switch series is equipped with console, web and SNMP management interfaces. With the management interface, the ALL-SG8628PMJ-10G provides a user-friendly, platform-independent management and configuration option. The ALL-SG8628PMJ-10G supports SNMP and can be managed via any management software based on the standard SNMP v1 or v2 protocol. At the same time, the ALL-SG8628PMJ-10G offers Cisco-like commands via Telnet or the console port, so the customer does not have to learn new commands for these switches. In addition, the ALL-SG8628PMJ-10G provides secure remote management by supporting SSH, SSL and SNMP v3 connections, where packet contents can be encrypted at each session.

Intelligent SFP DDM function
The ALL-SG8628PMJ-10G supports the SFP-DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.

PoE schedule function for energy saving

To protect the environment, the ALL-SG8628PMJ-10G Ethernet PoE switch can effectively control the power supply in addition to its ability to deliver high wattage. The PoE schedule function helps to enable or disable the PoE power supply for each PoE port during specific time intervals, and is a powerful feature that helps SMEs or enterprises to save power and money.

Planned PD restart

The ALL-SG8628PMJ-10G intelligent PoE switch allows each of the connected PoE IP cameras or PoE wireless access points to be restarted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.

Redundant ring with fast recovery for critical network applications

The ALL-SG8628PMJ-10G supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a given simple ring network, the data link recovery time can be as fast as 20 ms.

1588 time protocol for industrial computer networks

The ALL-SG8628PMJ-10G is ideal for telecommunications and carrier Ethernet applications and supports MEF service provisioning and timing-over-packet solutions for IEEE 1588 and synchronous Ether

 JSON-Java Script Object Notation API

With the JSON API, the ADMIN can create a special user and grant this user authorisation for JSON. We have focussed on 2 functions that we consider important.

  • PoE ON/OFF & LAN Port Enabled/Disabled (for switches with PoE function)
  • LAN Port Enabled/Disabled (for switches without PoE)

Technical data:

Model

ALL-SG8628PMJ-10G

Copper Ports

24-10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Fibre ports

4-10G SFP interfaces

PoE ports

1~24-802.3af/802.3at PoE Injector Ports

Console ports

1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)

Switch architecture

Store-and-Forward

Switch Fabric

128Gbps/non-blocking

Throughput

94.23Mpps @64 bytes

Address Table

32K entries

Share Data Buffer

32Mb

Jumbo Frame

9600 bytes

SDRAM

2Gb

Flash memory

128Mb

Flow control

IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Reset button

>2 sec: Factory default and reset

Power Supply

100~240V AC, 50/60Hz, 4A (max.)

Power consumption

Max. 370 watts

PoE standards

IEEE 802.3af Power over Ethernet/PSE

IEEE 802.3at Power over Ethernet Plus/PSE

PoE power supply type

Per port 52V DC, 300mA. Max. 15.4 watts (IEEE 802.3af)

Per port 52V DC, 600mA. Max. 30 watts (IEEE 802.3at)

LED indicators

Power: Green
Solid on- power work normal, off- power disconnected
System: Green
Blink-work normal, solid on- soft work abnormal, fast Blink - soft upgra
de
PoE: Yellow
Solid on- PoE work normally, Off- PoE doesn’t work, Blink - PoE overload
10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 1000 LNK/ACT (Green)
Blink - port connected with data transmission; Solid on- port connected
without data transmission
1G/10G SFP Interfaces (Port 25 to Port 28): Blue
Blink - port connected with data transmission; Solid on- port connected
without data transmission

EMC

Surge Immunity:

4KV Per: IEC61000-4-5

ESD Protection:

ESD Level 4 Per: IEC61000-4-2

EFT Level 4 Per: IEC61000-4-4

Layer2 Functions

Port configuration

Auto-negotiation

Flow control

Port Mirror: TX/RX/BOTH; Many-to-1 monitor

CPU Mirror

Traffic statistics

Link aggregation

Static link aggregation

LACP (Dynamic Trunk/Static Trunk)

Algorithm based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table

Aging Time

Static MAC address

Dynamic MAC address management

VLAN

4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunnelling
Private VLAN (Protected port)
GARP/GVRP

ACL

512ACLs
L2, L3 e L4
Time-based ACL
IP ACL
MAC ACL
MAC-IP ACL
User-Defined ACL
ICMPv6

Spanning tree

802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection

<20ms G.8032 ERPS Ring

Fast Ring

Multicast

1024 groups
IGMP v1/v2/v3 Snooping, Fast Leave
MLD Snooping
Multicast VLAN
IGMP filter
MVR
Multicast routing

QOS

8 mapping IDs to 8 level priority queues
CoS port-based
CoS 802.1p-based
CoS DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast)
Bandwidth control per port
SWRR, DWRR for Scheduling
Flow Redirect
Precedence
TOS
Rate Limiting(Ingress/Egress)
Stri Priority

Security features

Port security
MAC address filter
ARP Association (Manual, ARP scanning, DHCP snooping)
ARP Protection
AAA
DAI
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,
Protocol Type;
802.1x Authentication (port-based e MAC-based)
TACACS/TACACS+ Authentication
RADIUS Authentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port;
Port Isolation
Loopback detection

Management

SNMP v1/v2c/v3 with Full Private MIBs
RMON 4 groups
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2)
Firmware upgrade via console/web/TFTP
Configuration backup/reload
Dual firmware
LLDP
Configuration Export/Import
CDP Aware
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
sFlow
Telnet

Synchronisation, IEEE1588

Support IEEE1588v2 transparent clock

Other features

DNS Client
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Option 66
DHCP Option 67
DHCP Option 82
NTP/SNTP Client
UPNP
UDLD

PoE management

Total PoE power budget control
Per port PoE function enable/disable
PoE admin-mode control
PoE port power feeding priority
Per PoE port power limitation
PD classification detection
PD alive check
PoE schedule
Soft reboot PoE non-stop

Maintenance

Cable Diagnostics
Ping
SFP DDM (Digital Diagnostics Monitoring)
Thermal protection
System log (Local and Remote)
Memory and CPU Monitoring
Tracert/ tracert 6

Layer 3 functions

Static routing

IPv4 Unicast: Static Routing(Software Base)

IPv6 Unicast: Static Routing(Software Base)

IPV6

IPv6 neighbour discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Telnet(v6)
Http/Https
Interface IPV6
ACL IPV6

Dimension

440x290x44.5 mm

Weight

4.5 kg

Working temperature

-10 °C to 45 °C

Storage Temperature

-20 °C to 70 °C

MTBF

50,000hrs

Produktmerkmale:

Anzahl Ports PoE/LAN: 24/0
Belüftung Switch: Mit Lüfter
Einsatzort Switch: 19"
Extra Features: JSON-PoE-API
LAN Geschwindigkeit: 1Gbit/S
Management: full managed
PoE Budget: <500 Watt
PoE Port Leistung: 30W at
SFP Geschwindigkeit: SFP+ 10GBit
SFP Port Anzahl: 4
